How to Tie Up a Boat to a Floating Dock (The Right Way)

Tying your boat to a floating dock seems simple until wind, wake, or water level changes start putting stress on both your boat and the dock itself. Which cleat is best? How many to use? How to properly tie the boat to the cleat? You are about to learn it all.

Here is the part many boat owners overlook.

Before you secure your boat to a floating dock, the dock itself must be properly secured.

If your dock shifts, lifts, or drifts under load, even a perfect cleat hitch will not protect your boat. That means the anchoring system matters just as much as the lines. Common options include chain and anchor, pilings, and shore attachment. For more on building and anchoring a floating dock system, see our guide: https://patriotdocks.com/blogs/articles/how-to-build-a-floating-dock-diy-costs-plans-best-options

You can also download step-by-step assembly instructions at https://patriotdocks.com/pages/instructions

Remember this:

A stable dock comes first. A properly tied boat comes second.

Step 1: Choose the Safest Position for Your Boat

Before tying any lines, think about how your boat sits in relation to incoming waves and prevailing wind.

Positioning matters just as much as tying technique.

Try to:

• Keep the bow facing dominant wave direction when possible
• Avoid broadside exposure to regular wake or wind
• Use the dock to shield the boat instead of exposing it.

When a boat sits in the safest orientation, line loads are reduced and impact with the dock becomes far less likely.

Step 2: Use the Right Cleat Setup

Most traditional docks rely on surface mounted cleats bolted directly to the decking.

That is not always the strongest approach, especially on modular docks with removable decking like those from Patriot Docks.

Because the decking is removable for portability and ease, mounting cleats directly to it transfers load into the deck panels instead of the structural frame. Keep in mind that frame-mounted cleats can risk scratching your boat, so careful installation and consideration is needed.

Best Practice for Modular Floating Docks

On Patriot systems:

Frame mounted cleats are the strongest option.

This allows load transfer into the dock structure and improves resistance to surge and wake.

If your decking is permanently fixed, cleats can still be mounted directly to the surface.

Our cleat system allows both mounting methods and can be oriented over the decking or mounted directly depending on the application.

Types of Dock Cleats and When to Use Them

There are many cleat styles available today, but not all are appropriate for floating docks or real-world wave conditions.

The classic two-horn cleat remains the most widely used because it allows secure rope wrapping and reliable holding power.

Dock Cleat Style Comparison

Step 3: Proper Cleat Placement

You will typically want:

• Bow line cleat
• Stern line cleat
• Optional spring line cleat for higher traffic or rough water areas

This helps prevent forward and backward movement, reduces dock impact, and spreads load across multiple tie points.

What Is a Spring Line?

A spring line is a dock line that runs at an angle rather than straight from bow or stern. For example, a forward spring line runs from the bow area of the boat back toward a cleat near the middle or stern end of the dock. An aft spring line does the opposite. These angled lines prevent the boat from surging forward or backward along the dock, which is the movement that causes the most damage in wake and wind conditions. If you only have two cleats, bow and stern lines handle the basics. But adding even one spring line dramatically improves stability.

What Dock Line Material Should You Use?

Not all rope works well for dock lines. Nylon is the standard choice for dock lines because it stretches under load, absorbing shock from waves and wake instead of transferring it directly into cleats and hardware. Polyester has less stretch and higher UV resistance, making it a good option for permanent or semi-permanent tie-offs where you want less give. Polypropylene floats and is inexpensive, but it degrades quickly in sunlight and is generally not recommended for regular docking. For most residential floating docks, 3/8” to 1/2” diameter nylon line is the best all-around choice for boats under 30 feet.

How Many Cleats Does a Floating Dock Need?

A properly secured boat relies on multiple tie points. Industry guidance suggests cleats are typically spaced 7 to 10 feet apart on docks, with even small boats requiring at least two primary tie points for bow and stern lines.

For floating docks, best practice is to think in terms of boat length and line configuration. Not all boat lengths function with every dock, which is beyond the scope of this article.

Recommended Number of Dock Cleats by Boat Length

Floating dock note:
On removable decking systems like Patriot docks, mounting cleats to the frame provides the strongest load path. Surface mounting works when decking is permanent, but frame mounting reduces stress on panels and ensures the dock absorbs load safely.

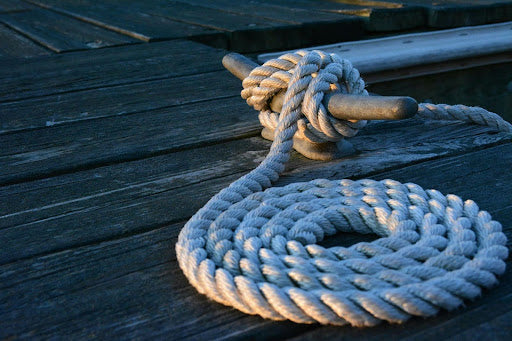

Step 4: How to Tie to a Double Horned Cleat

Use a cleat hitch.

1. Wrap the line once around the base of the cleat
2. Cross over in a figure eight pattern
3. Repeat the figure eight
4. Finish with a locking half hitch by twisting a loop and dropping it over one horn

Cleats are designed to hold wraps, not knots.

A common mistake is tying a standard knot around the cleat or skipping the locking half hitch at the end. Without that final twist, the line can slip loose under tension. Another mistake is over-wrapping. Two figure eights plus the locking hitch are all you need. More wraps actually make the line harder to release in an emergency. If you are new to cleat hitches, practice a few times on land before you need to do it with a loaded boat in the wind. It takes about 10 seconds once you have the pattern down.

Step 5: Line Tension Matters

Floating docks move with the water.

Your lines should be snug but not tight.

Lines that are too tight create stress on hardware and restrict dock movement.

Lines that are too loose allow the boat to surge into the dock.

You want controlled movement, not restriction.

Step 6: Do Not Skip Dock Protection

Even with properly tensioned lines, contact happens.

This is where bumpers and cushioning become critical.

Fenders protect the boat. Dock protection protects both.

One option that serves both purposes is the Patriot Side Stability Float.

The Patriot Docks Side Stability Float:

• Adds lateral stability to the floating dock
• Reduces roll and movement
• Provides a cushioned buffer between the boat and dock edge

This helps absorb impact energy instead of transferring it directly into your dock frame or boat hull.

In areas with frequent wake or wind exposure, this added layer of protection can prevent long term wear and reduce stress on cleats and lines. Browse all dock accessories including bumpers, fenders, and stability floats at https://patriotdocks.com/collections/dock-accessories

Step 7: Why Folding Cleats Are Worth Considering

Traditional fixed cleats create trip hazards and snag points.

A folding cleat lays flat when not in use.

Benefits include:

• Reduced injury risk
• Cleaner walking surface
• Fewer rope snags
• Better usability on multi purpose docks

Step 8: Surface vs Frame Mounting

Final Thought

Tying your boat correctly is only effective if your floating dock is stable and properly secured. For a full walkthrough on building and anchoring a floating dock, check out our guide: https://patriotdocks.com/blogs/articles/how-to-build-a-floating-dock-diy-costs-plans-best-options

Remember the basics:

Position the boat safely
Use the right cleat setup
Control line tension
Protect both boat and dock

These small decisions make the biggest difference in real world conditions.
