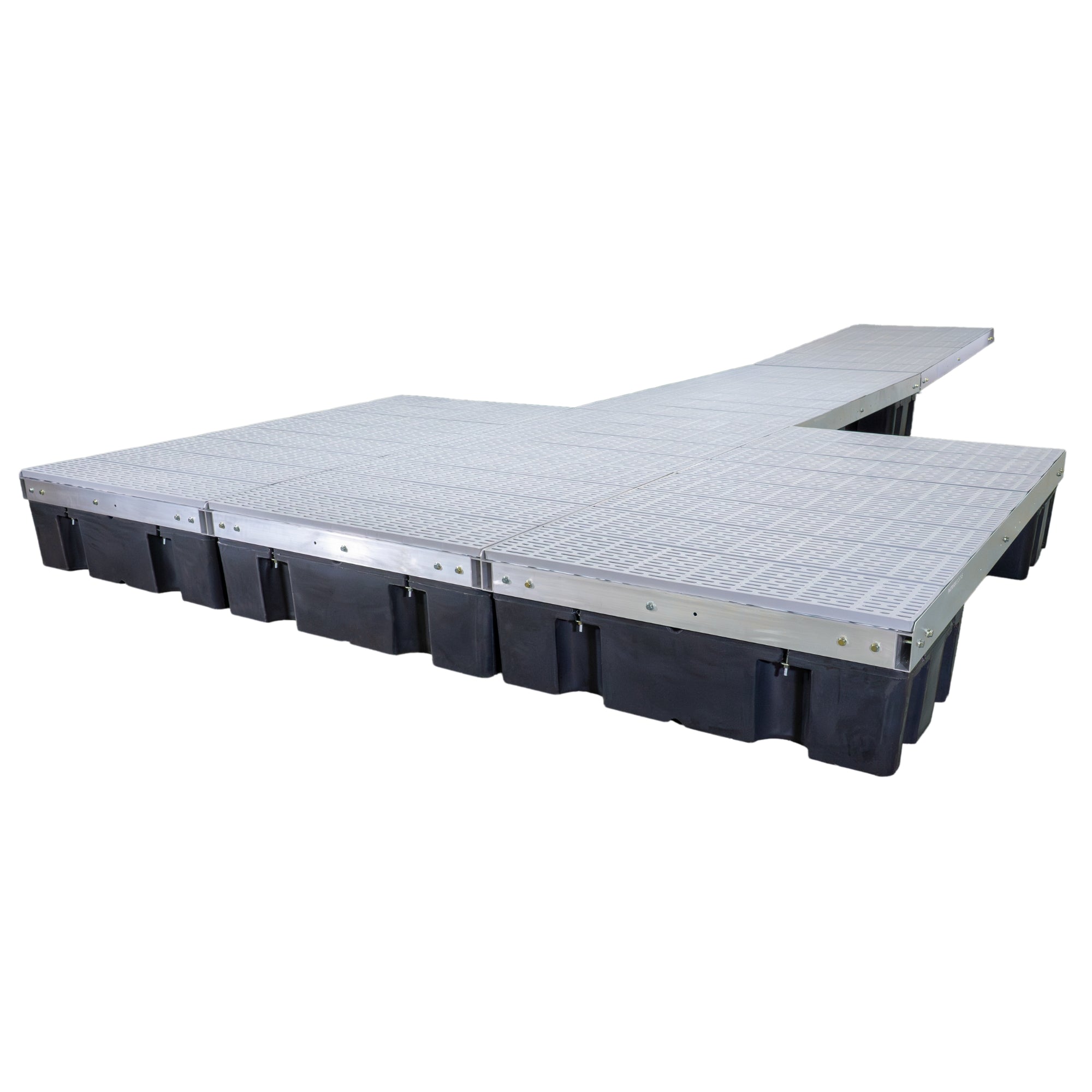

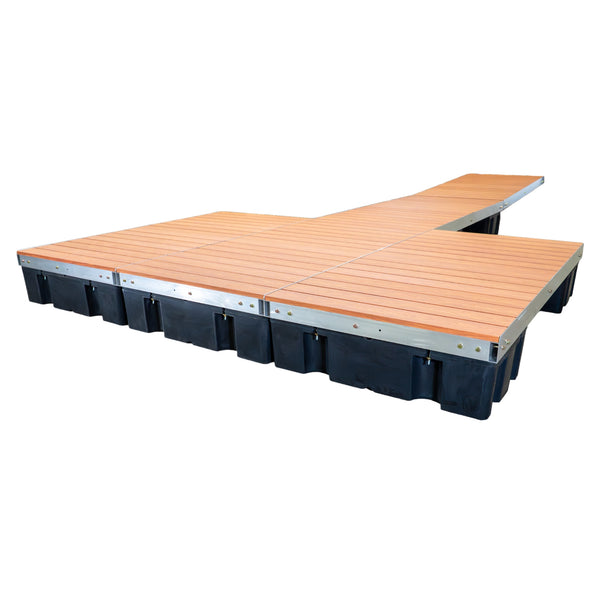

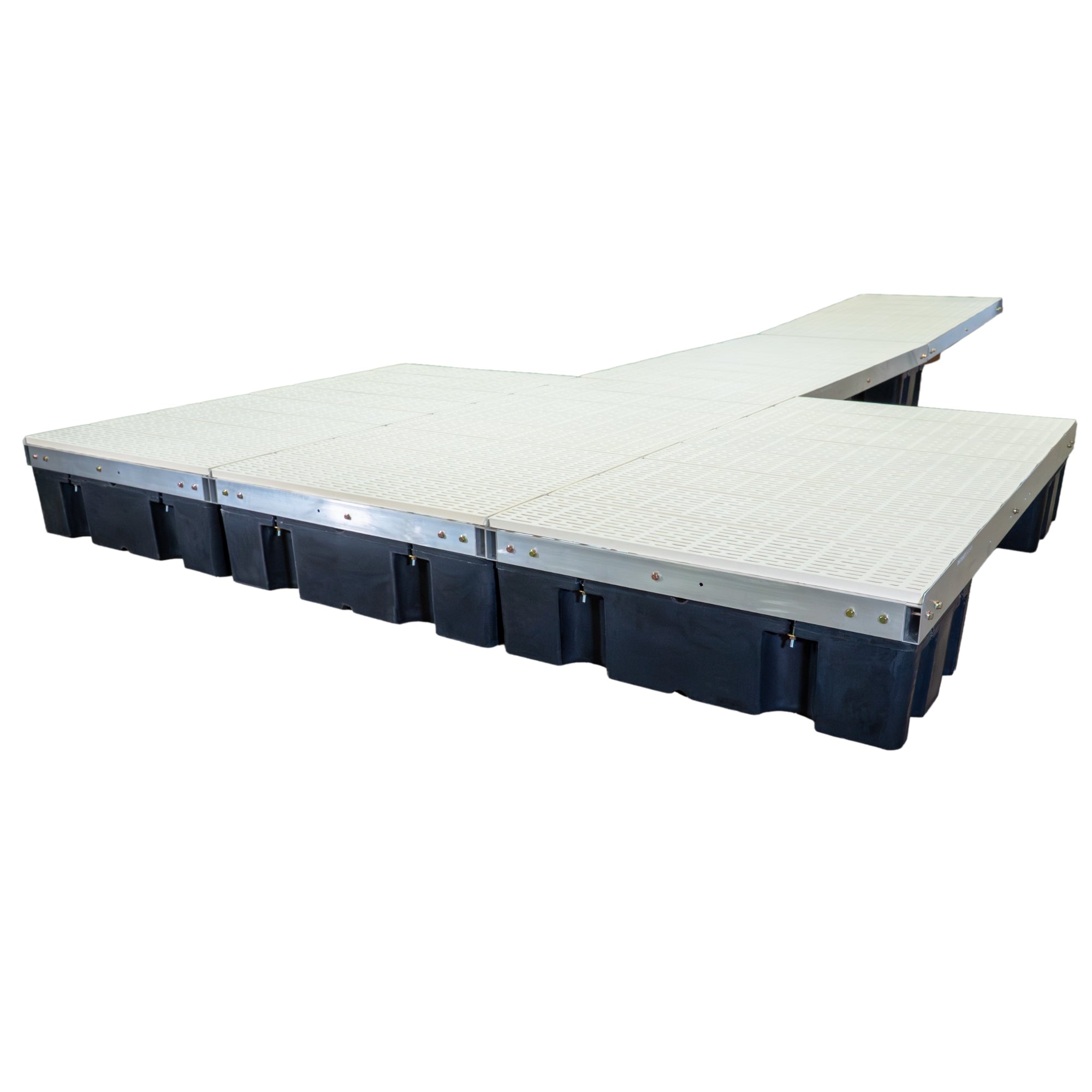

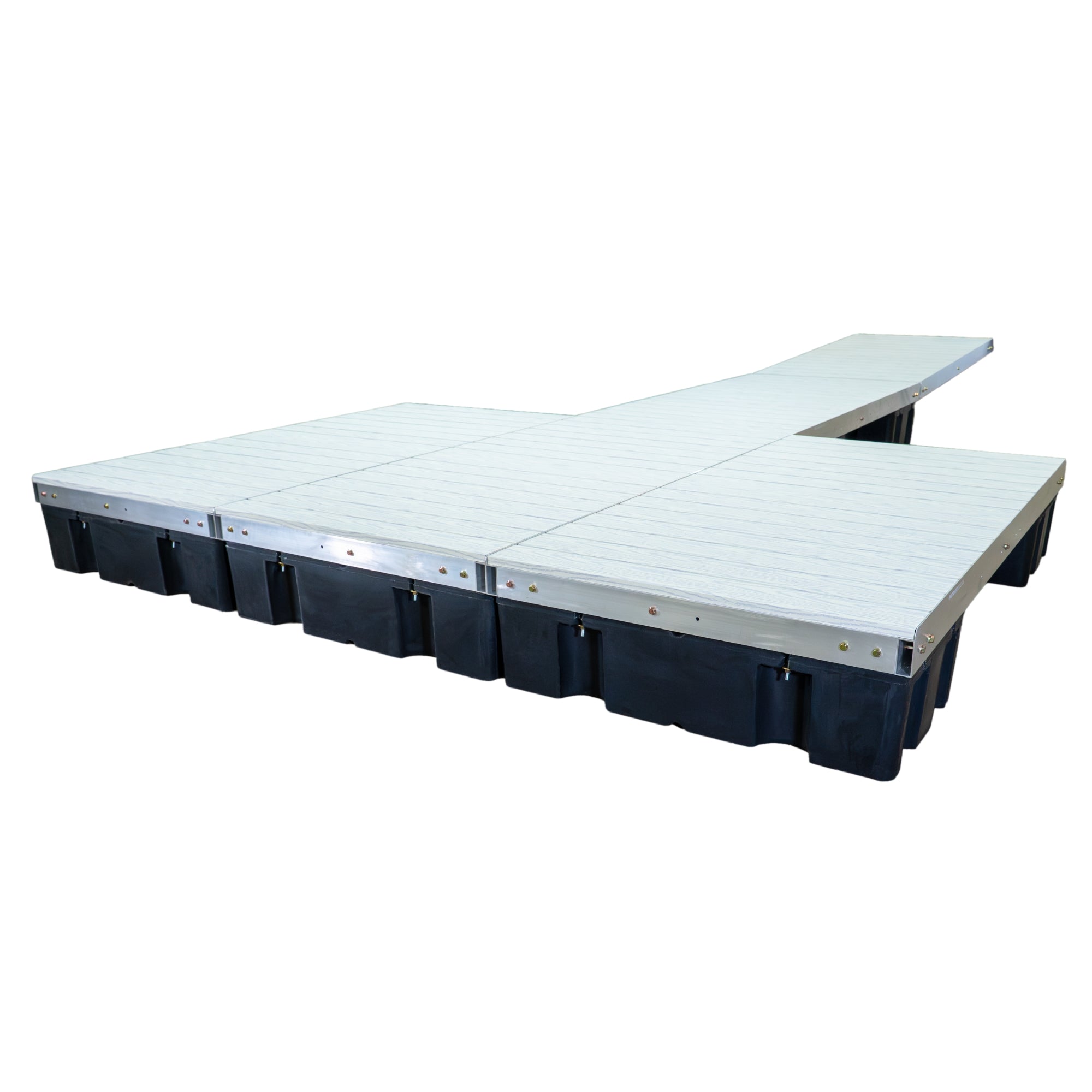

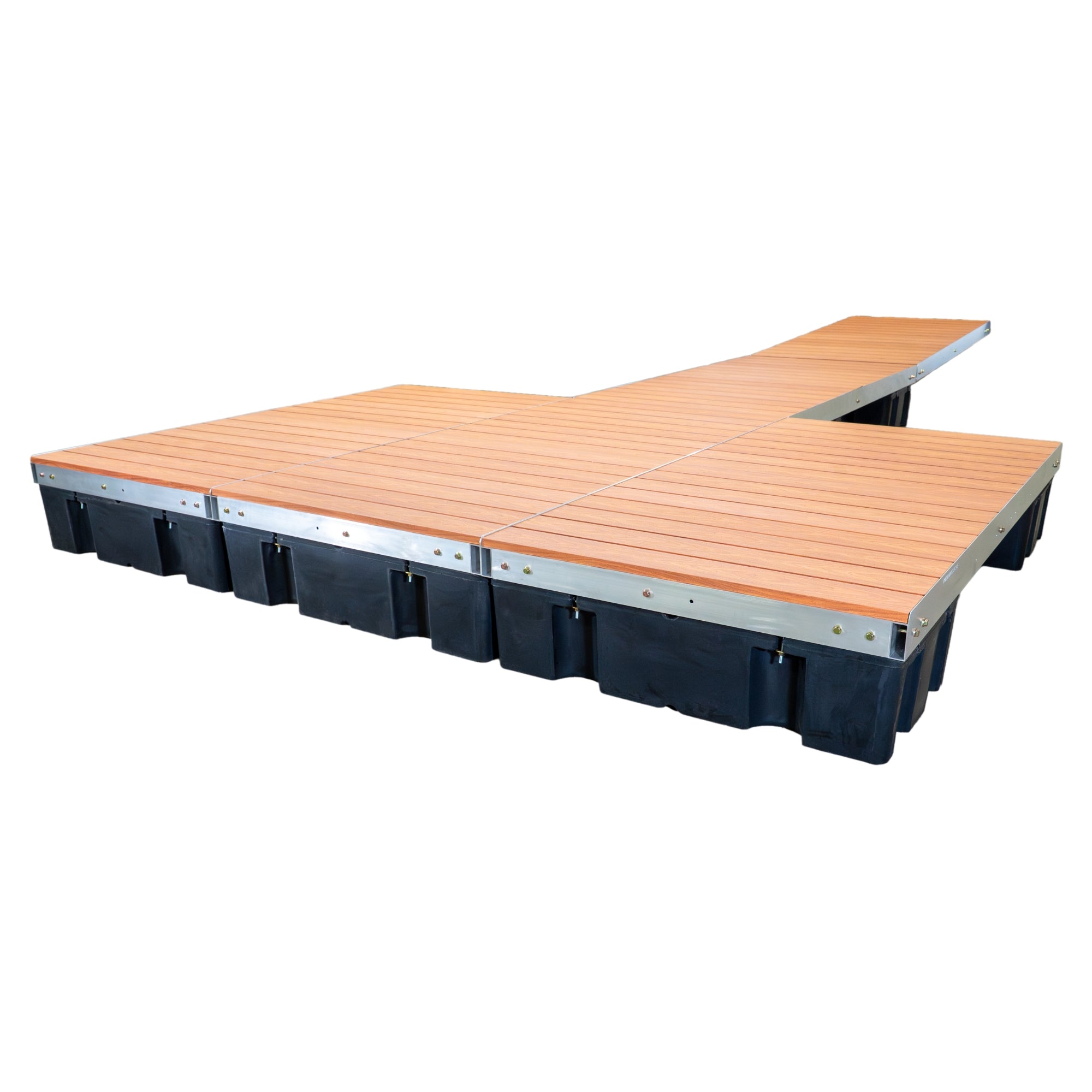

T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock
T-Shaped Low-Profile Floating Dock

T-Shaped Low-Profile Floating Dock

$4,313.32 - $14,375.42

More Space. More Stability. Just as Simple. The Patriot Docks Low-Profile Floating Dock – T-Shape combines the proven strength of our aluminum floating dock system with a versatile T-shaped layout—giving you extra stability, more functional surface area, and a natural seating or launch zone perfect for kayaks, lounging, or fishing. With its low-profile design, this system keeps you closer to the water while automatically adapting to fluctuating lake levels. Built with modular aluminum frames, foam-filled floats, and drop-in decking, it’s an easy-to-own solution for deep, muddy, or unstable bottoms where traditional posts won’t work.
Sale price $4,313.32

Shipping calculated at checkout

SKU: D-22420
Categories:

Description

Low Profile Floating Dock – T-Shape

More Space. More Stability. Just as Simple.

The Patriot Docks Low-Profile Floating Dock – T-Shape combines the proven strength of our aluminum floating dock system with a versatile T-shaped layout—giving you extra stability, more functional surface area, and a natural seating or launch zone perfect for kayaks, lounging, or fishing.

With its low-profile design, this system keeps you closer to the water while automatically adapting to fluctuating lake levels. Built with modular aluminum frames, foam-filled floats, and drop-in decking, it’s an easy-to-own solution for deep, muddy, or unstable bottoms where traditional posts won’t work.

Why Choose the T-Shape Layout?

  • Wider platform enhances stability in rougher conditions
  • Built-in seating or staging space for gear, people, or docking
  • Creates a defined launch or tie-off area without extending shoreline length

Key Features

  • Low-profile frame allows easy access to kayaks and paddlecraft
  • Foam-filled float drums provide durable, unsinkable support
  • Rust-resistant aluminum construction keeps weight low and life span long

The hinge system between sections lets your dock flex naturally with waves and wind, while the shore ramp gives you a smooth, secure approach from land to water.

What’s Included in the T-Shape Package:

  • 8′ aluminum ramp to the shoreline
  • 4′ x 8′ dock frames
  • Foam-filled 24″ x 48″ x 12″ floats
  • 4′ x 4′ drop-in decking panels
  • (4) Piling sleeves for anchoring
  • Hinges every 16′ to reduce stress and improve flexibility
  • All assembly hardware included

(Anchoring system sold separately for site-specific compatibility.)

Customize It Your Way

Want to expand later or tweak the layout? All Low-Profile dock frames work with our DIY Floating Dock Sections, giving you total flexibility as your waterfront needs grow and change.

Strong. Stable. Simple. The Low-Profile T-Shape Floating Dock brings added space and functionality without complicating your setup—perfect for recreational users who want more from their dock.

Specifications

FRAME:

  • Weight per frame: 57 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolt-together
  • Hinge Span: Every 16 feet

FLOAT:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 48x24x12
  • Float Capacity: 390 pounds

STABILITY FLOATS:

  • Float Material: High-Density Polypropylene
  • Foam-filled: No
  • Float Dimensions: 47-1/4" x 13-1/2" x 6-3/4"
  • Float Capacity: 145 pounds

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds

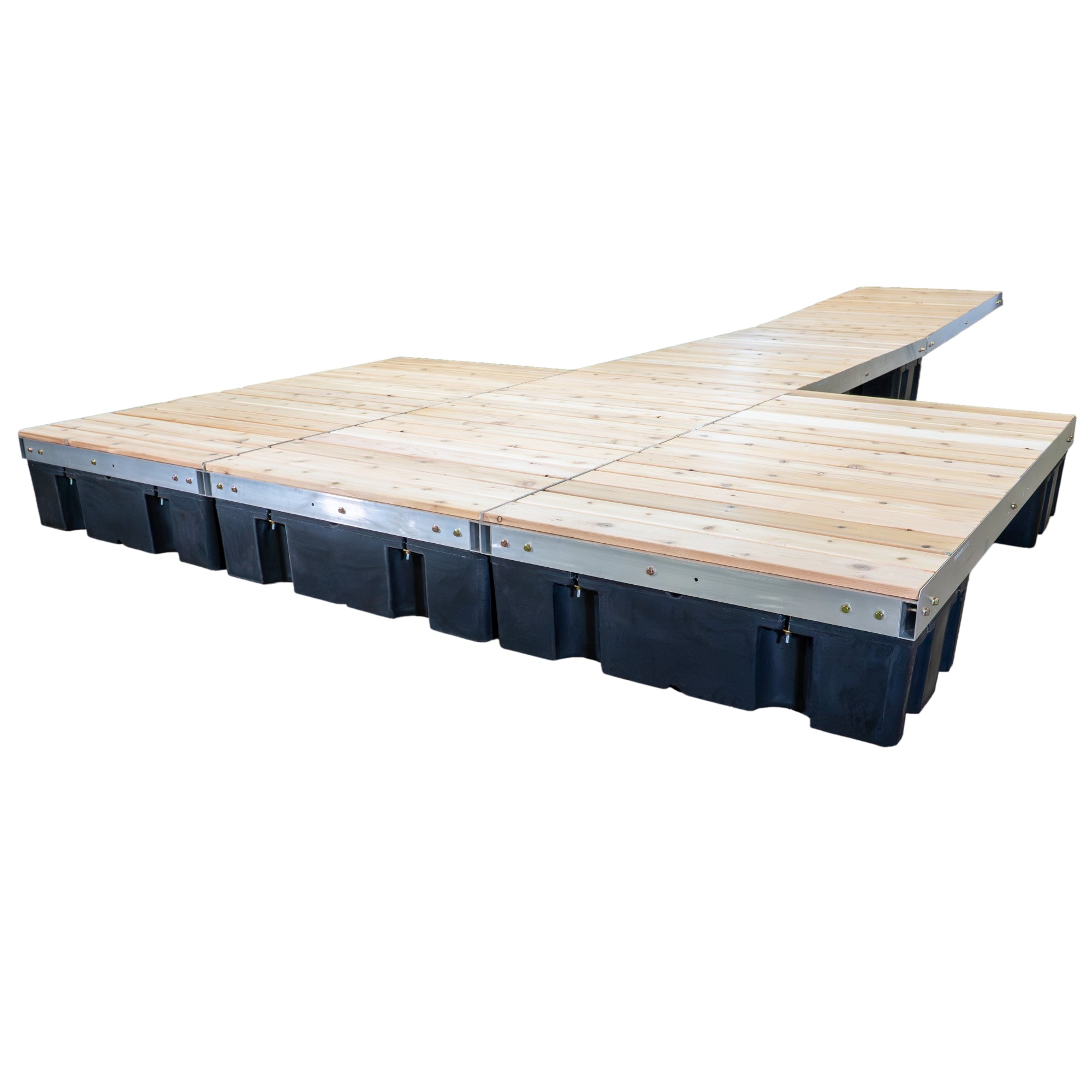

  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds
  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds
  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish

HINGE:

  • Hinge Material: Aluminum
  • Hinge Dimensions: 48x1 inches
  • Articulation Range: 92″ up (74°) and 48″ down (31°) from Dock Surface

HARDWARE:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (57lbs with floats); Low profile (4" tall, easy watercraft access); No-rust aluminum; Bolt-together sections; Modular (bolt or hinge one frame to the next); Nests decking (frames in drop-in decking panels)

FLOATS: Foam filled for leak protection; 780-pound buoyancy rating per platform; Large plastic drums (12" tall); Easy mounting to frame

STABILITY FLOATS: Extra side flotation provides 145
pounds in additional buoyancy rating per float; Plastic surface acts as a bumper; 47-1/4" x 13-1/2" x 6-3/4"

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

HINGES: Articulates to prevent tension; Large range of articulation (Articulation Range for 8ft Ramps to Low-Profile Docks: 92″ up (74°) and 48″ down (31°) from Dock Surface); Easy slide assembly

DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF; Each Floating Dock package comes with 4 Anchor
Brackets

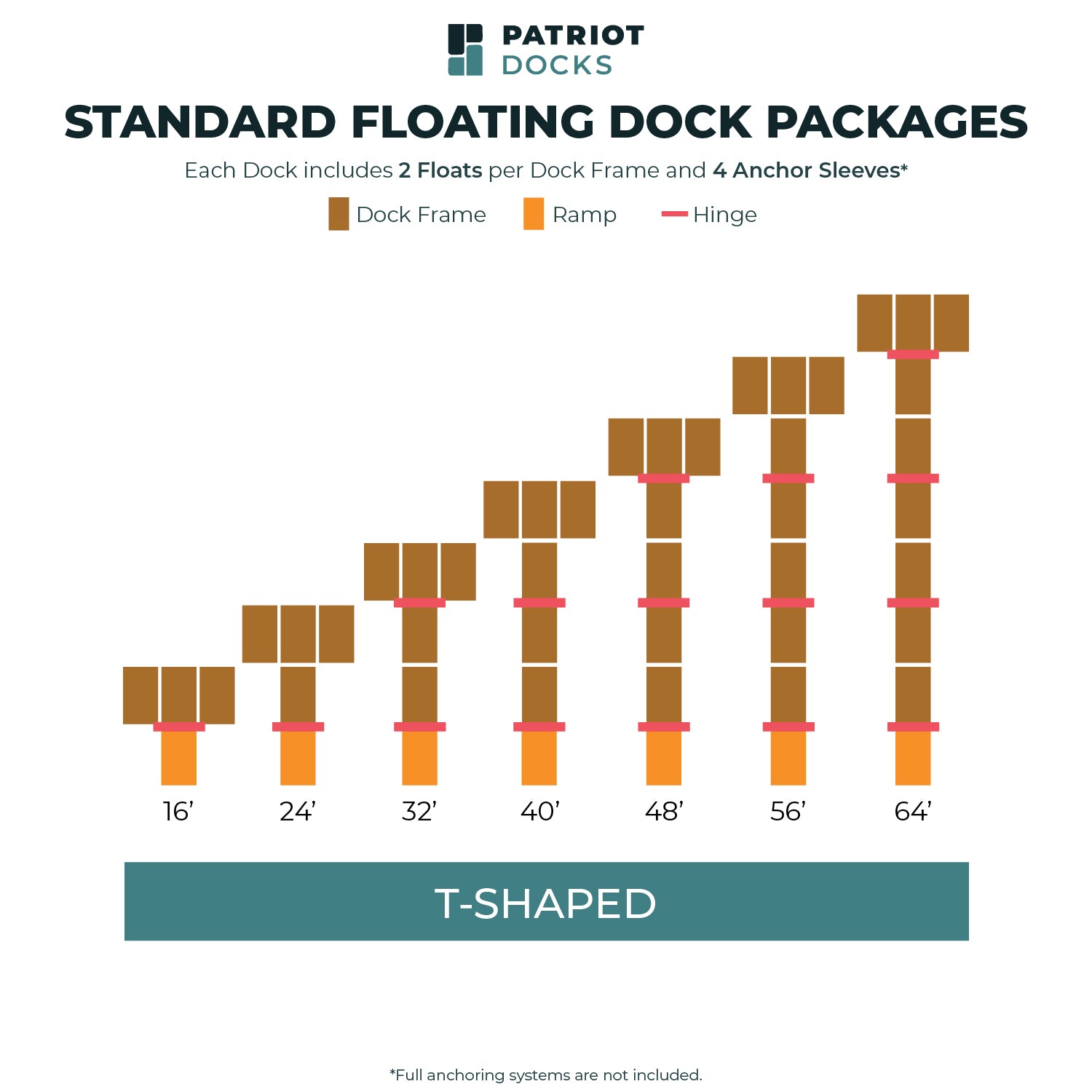

Layout
