4ft Shore Ramp Kit

$526.11 - $721.92

The Patriot Docks 4 ft Shore Ramp Kit provides a smooth, stable transition from shoreline to dock with dual-direction articulation that adapts to changing angles and water levels. Built from marine-grade aluminum, it’s lightweight, durable, and configurable for truss or floating docks. Choose your decking and shore support options to match your dock system perfectly.

Sale price $526.11

Shipping calculated at checkout

SKU: 10340

Description

Patriot Docks 4 ft Shore Ramp Kit

A Smooth, Stable Transition from Shore to Dock

The Patriot Docks 4 ft Shore Ramp Kit is designed to create a safe, seamless connection between shoreline and dock. With dual-direction articulation, the ramp naturally adjusts to changing angles and water levels, making it ideal for uneven terrain, seawalls, or sloped shorelines. At 4 feet long, this ramp provides a gradual, comfortable transition for everyday use.

Constructed from marine-grade aluminum rectangular tubing, the ramp frame is lightweight for easy handling while delivering long-term durability in harsh waterfront environments. Matching drop-in decking panels ensure a clean, unified look that integrates seamlessly with your Patriot Docks system.

This kit is configurable to match your dock setup—customers select whether the ramp connects to a Truss Dock or Floating Dock, then choose their preferred decking and shore-end support style.

Key Features

  • 4 ft ramp length for a smooth, gradual shoreline transition
  • Dual-direction articulation adapts to changing dock angles and elevations
  • Marine-grade aluminum frame — lightweight, strong, and corrosion-resistant
  • Drop-in decking panels for easy installation and consistent appearance
  • Configurable to fit Truss Dock or Floating Dock systems

Dock Connection Options

Truss Dock Connection — includes Truss-to-Low-Profile Hinge Kit

Floating Dock Connection — includes Floating Dock Hinge Kit

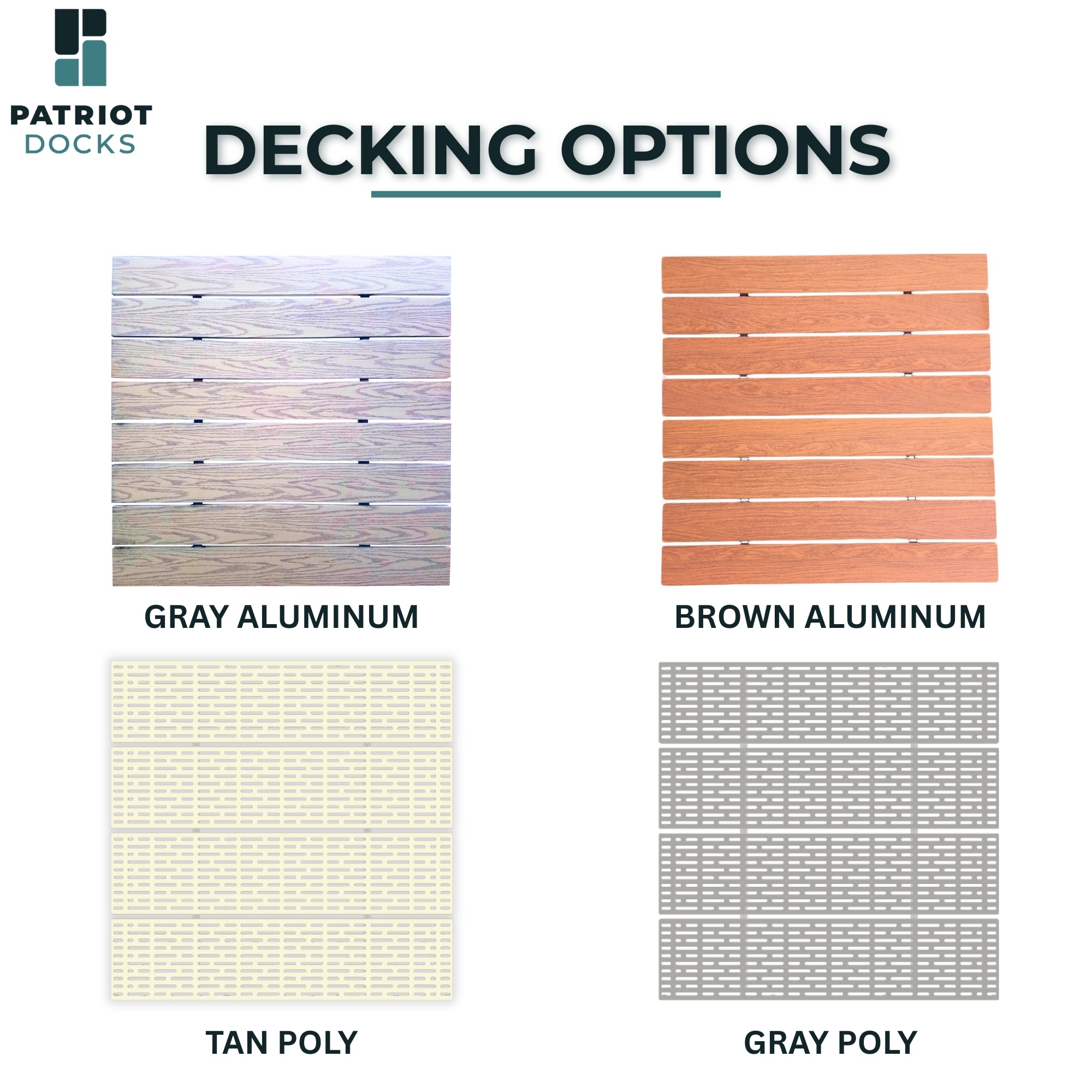

Decking Options

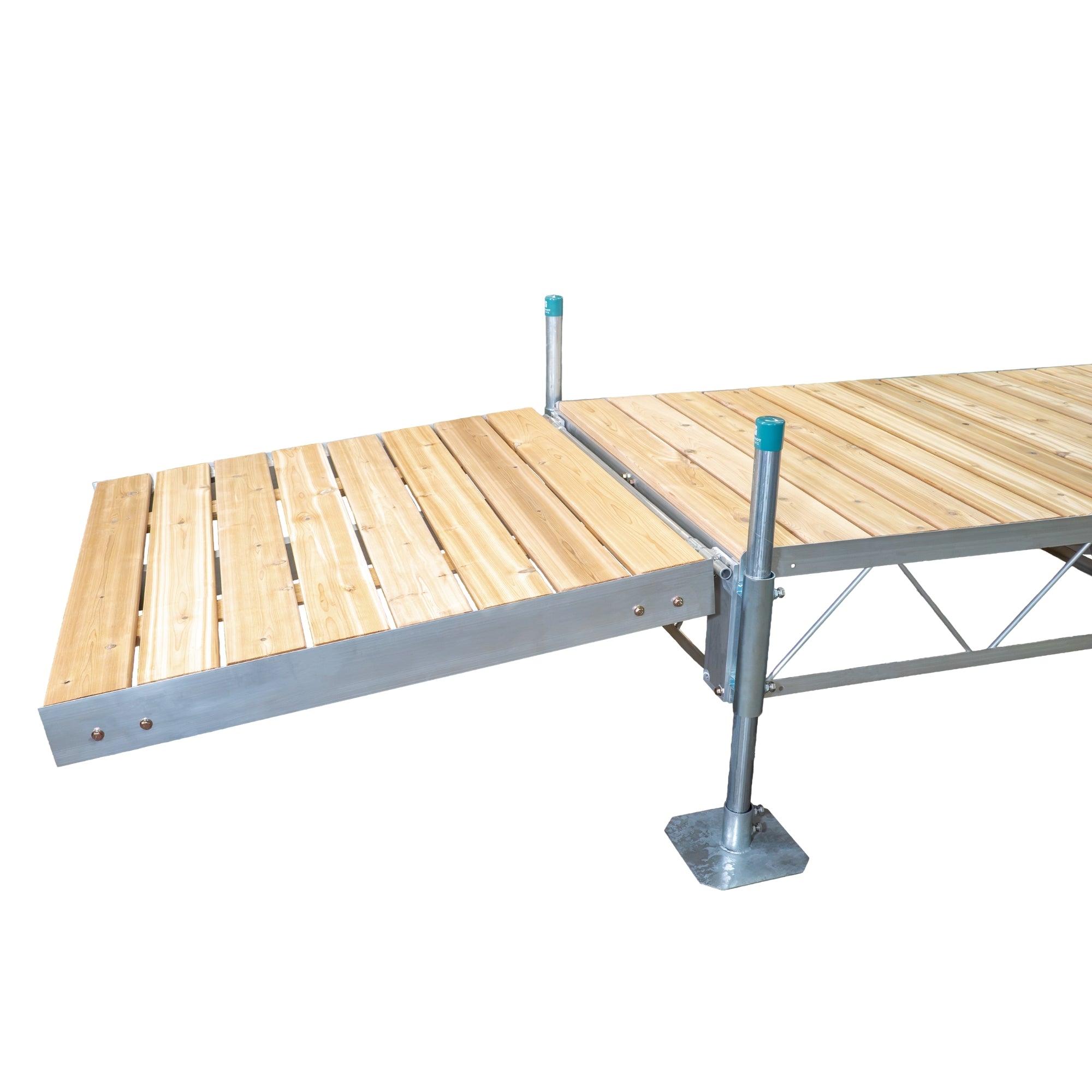

  • Western Red Cedar
  • Reinforced Poly

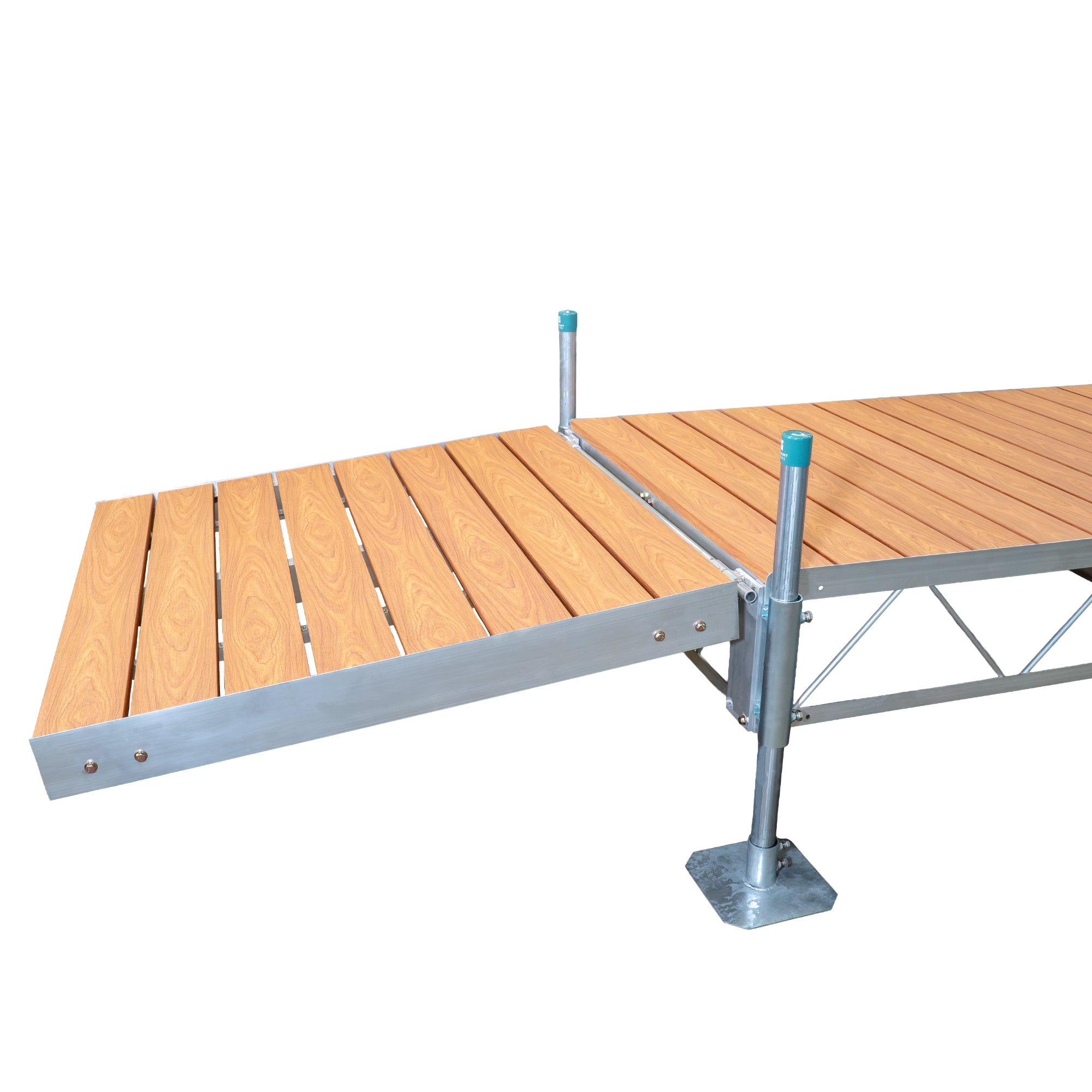

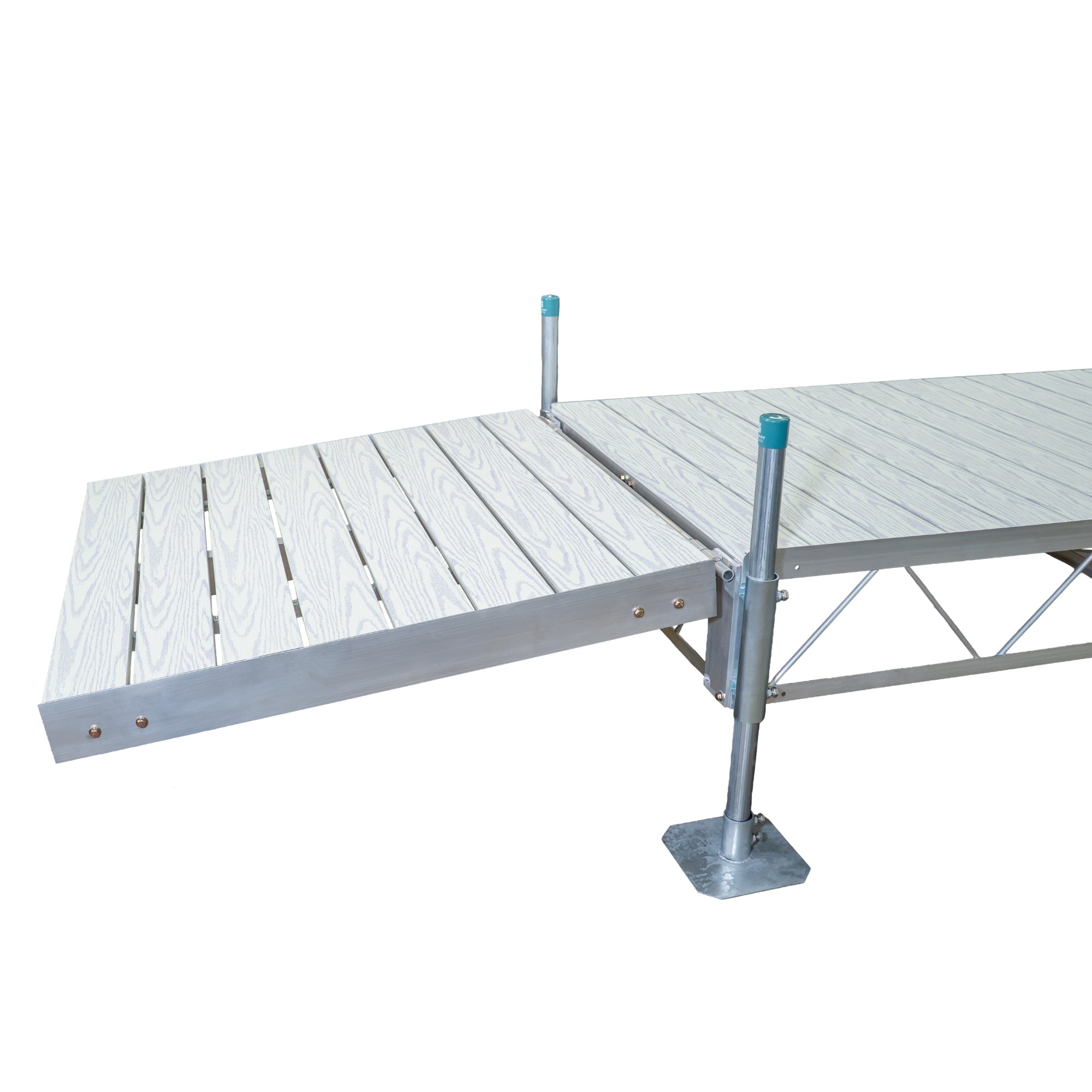

  • Wood Grain Aluminum

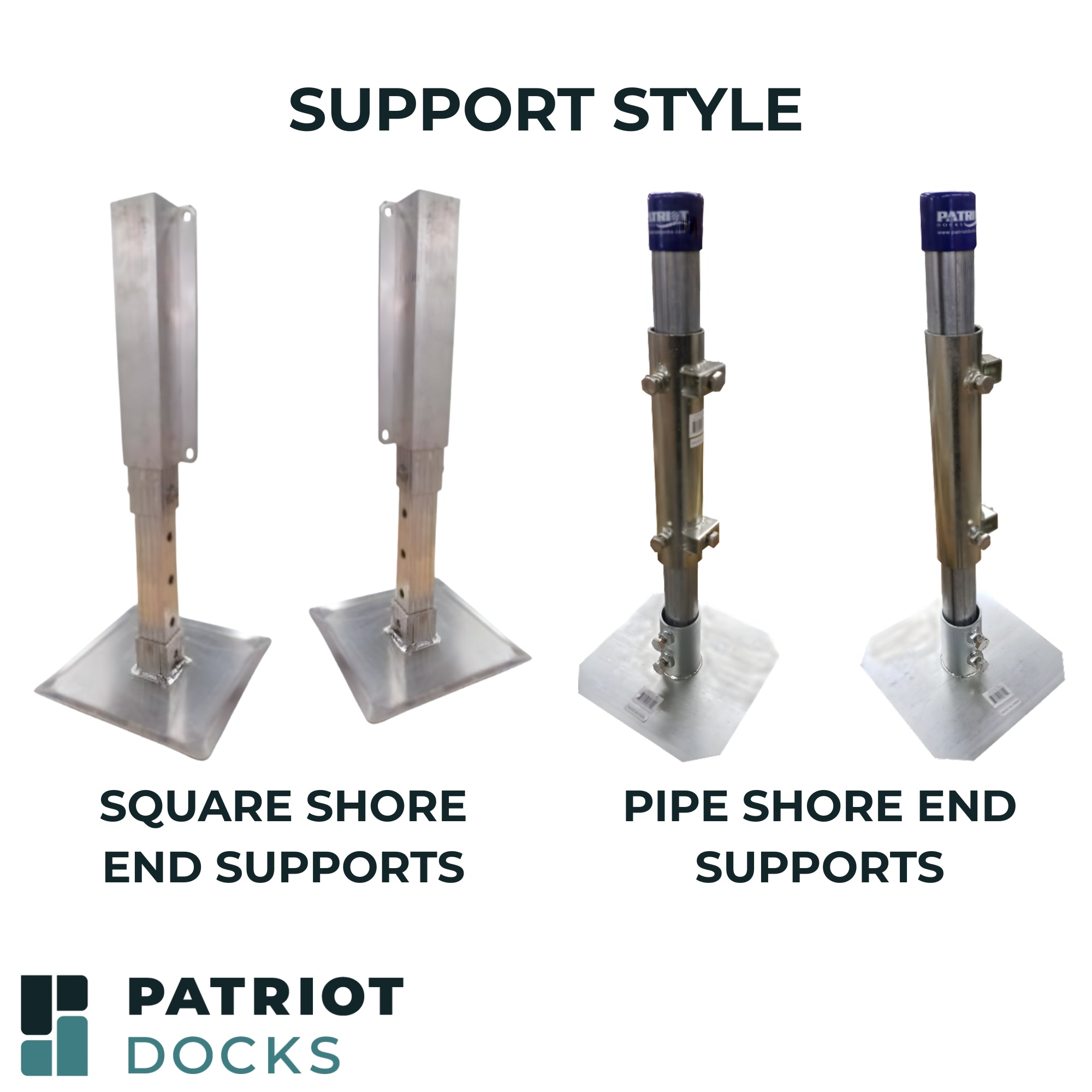

Shore Support Options

Pipe Supports — include 3 ft galvanized pipes; compatible with Pipe Dock systems

Square Supports — 24 in square post system compatible with Patriot Docks modular docks

Ideal Uses

  • Bridging uneven or rocky shorelines
  • Spanning seawalls or bulkheads
  • Creating a gradual step-down from elevated terrain
  • Improving accessibility and ease of use
  • Connecting different dock styles at the shoreline

Built for strength, adaptability, and everyday comfort, the Patriot Docks 4 ft Shore Ramp Kit completes your dock system with a stable, professional-grade transition from land to water.

Specifications

Ramp Frame:

  • Weight per frame: 25-45 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolted

Decking Options:

  • All Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 37 pounds
  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds
  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds
  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish

Mounting:

  • Mount Type: Hinge Mounting
  • Articulation Range for 4ft Ramps to Truss Docks: 44″ up (73°) and 24″ down (32°) from Dock Surface
  • Articulation Range for 8ft Ramps to Truss Docks: 88″ up (73°) and 48″ down (32°) from Dock Surface
  • Articulation Range for 4ft Ramps to Low-Profile Docks: 46″ up (74°) and 24″ down (31°) from Dock Surface
  • Articulation Range for 8ft Ramps to Low-Profile Docks: 92″ up (74°) and 48″ down (31°) from Dock Surface

Hardware:

  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8″ or 1/2″

Components

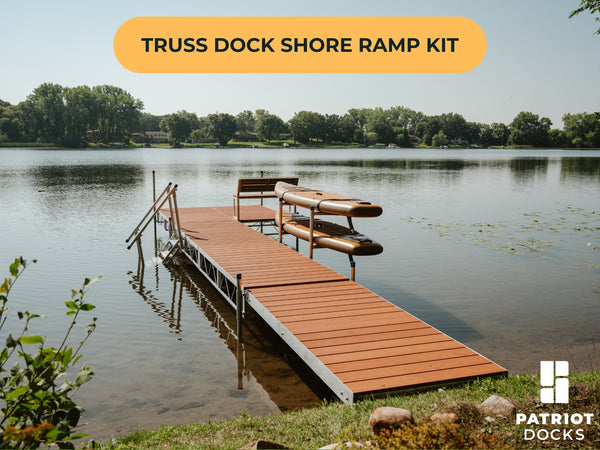

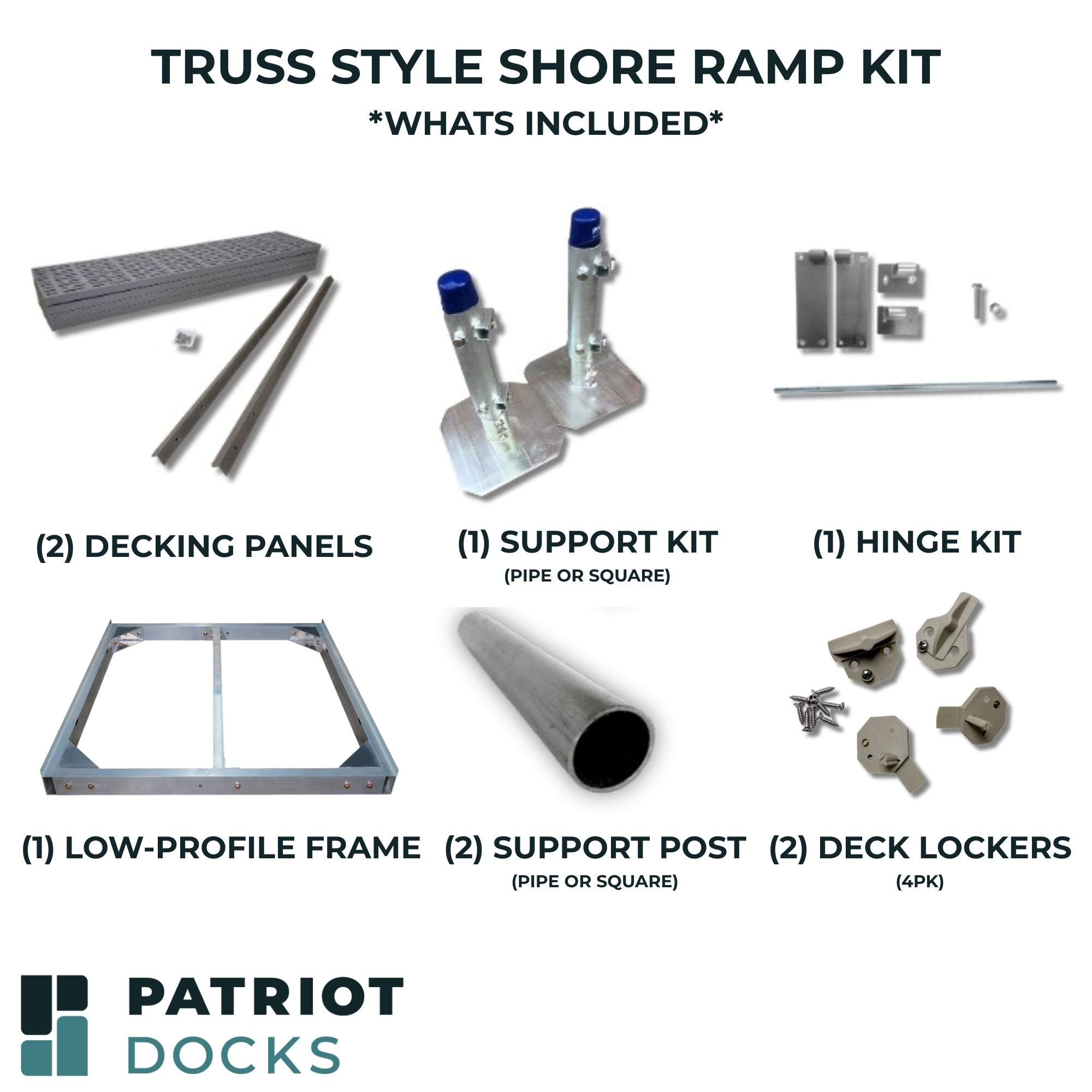

Truss Dock Shore Ramp Kit:

(1) Low-Profile Frame

(2) Decking Panel (your choice)

(2) Deck Lockers - 4pk

(1) Truss to Low-Profile Hinge Kit

(2) Pipe or Square Support Post

(2) Pipe Or Square Support Kit (includes footplates)

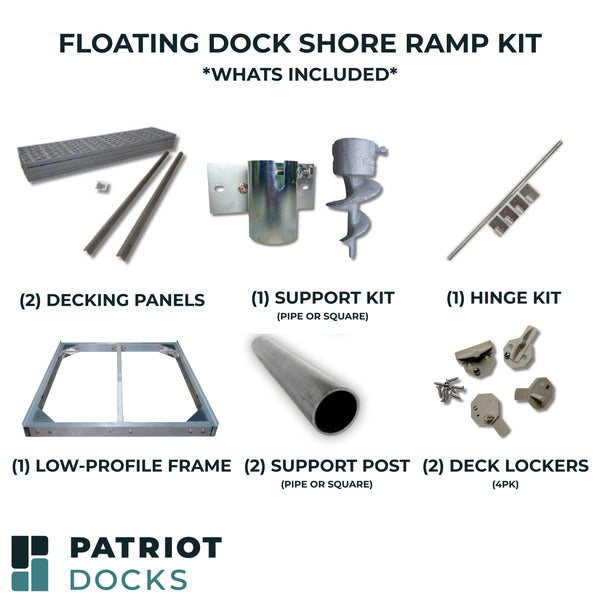

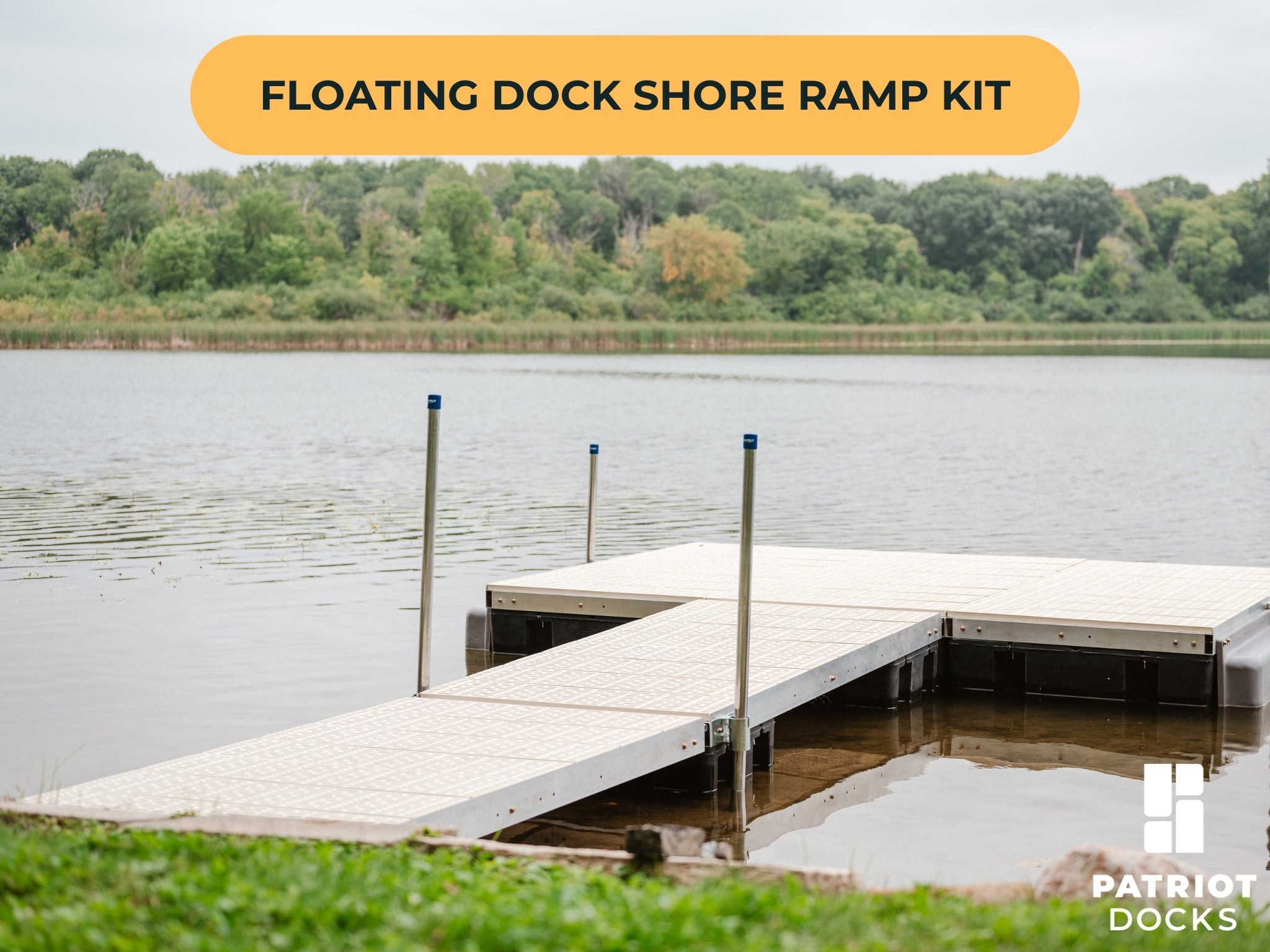

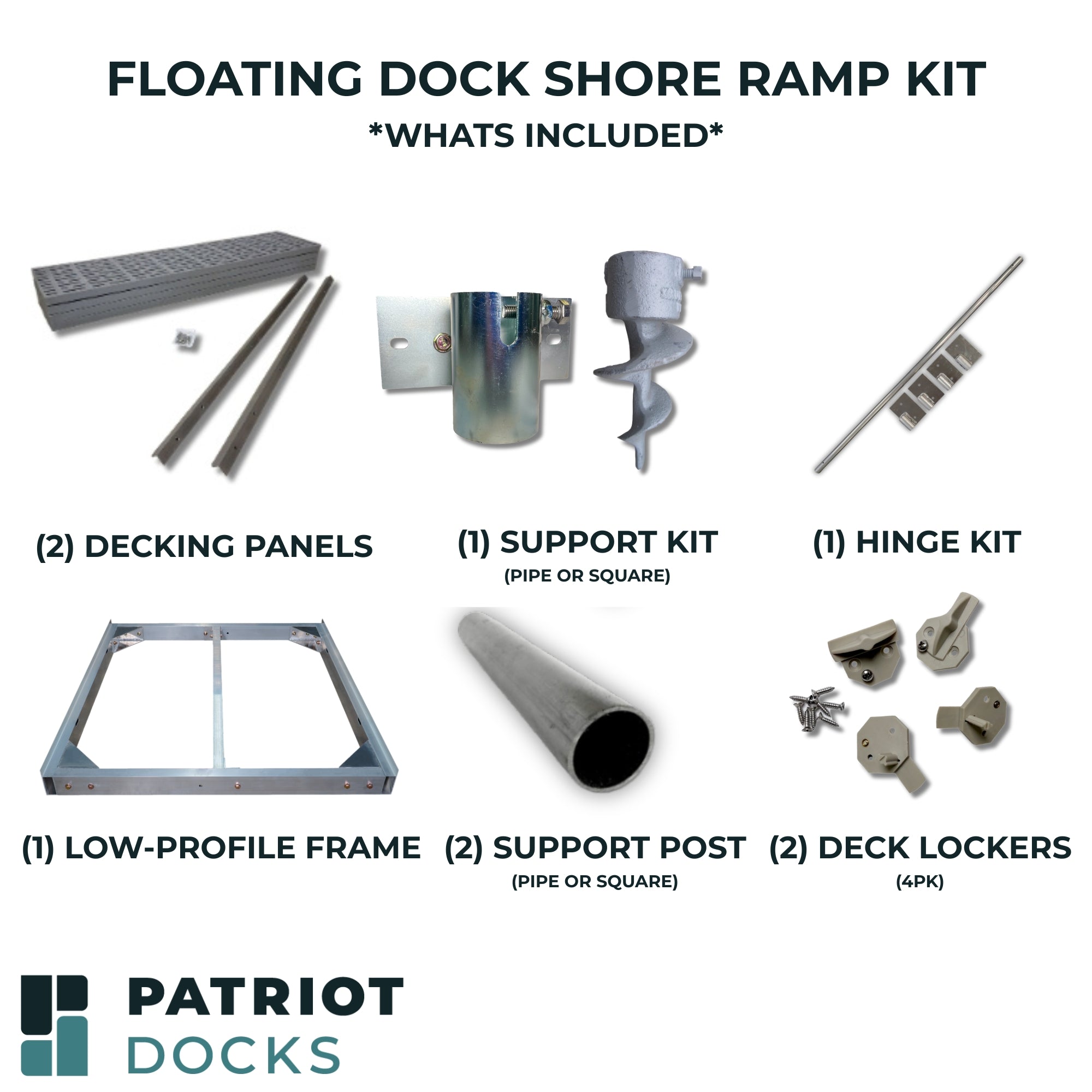

Floating Dock Shore Ramp Kit:

(1) Low-Profile Frame

(2) Decking Panel (your choice)

(2) Deck Lockers - 4pk

(1) Low-Profile to Low-Profile Hinge Kit

(2) Pipe or Square Support Post

(2) Pipe Or Square Support Kit (Pipe Kit includes an auger)
