$2,361.80 - $2,933.80

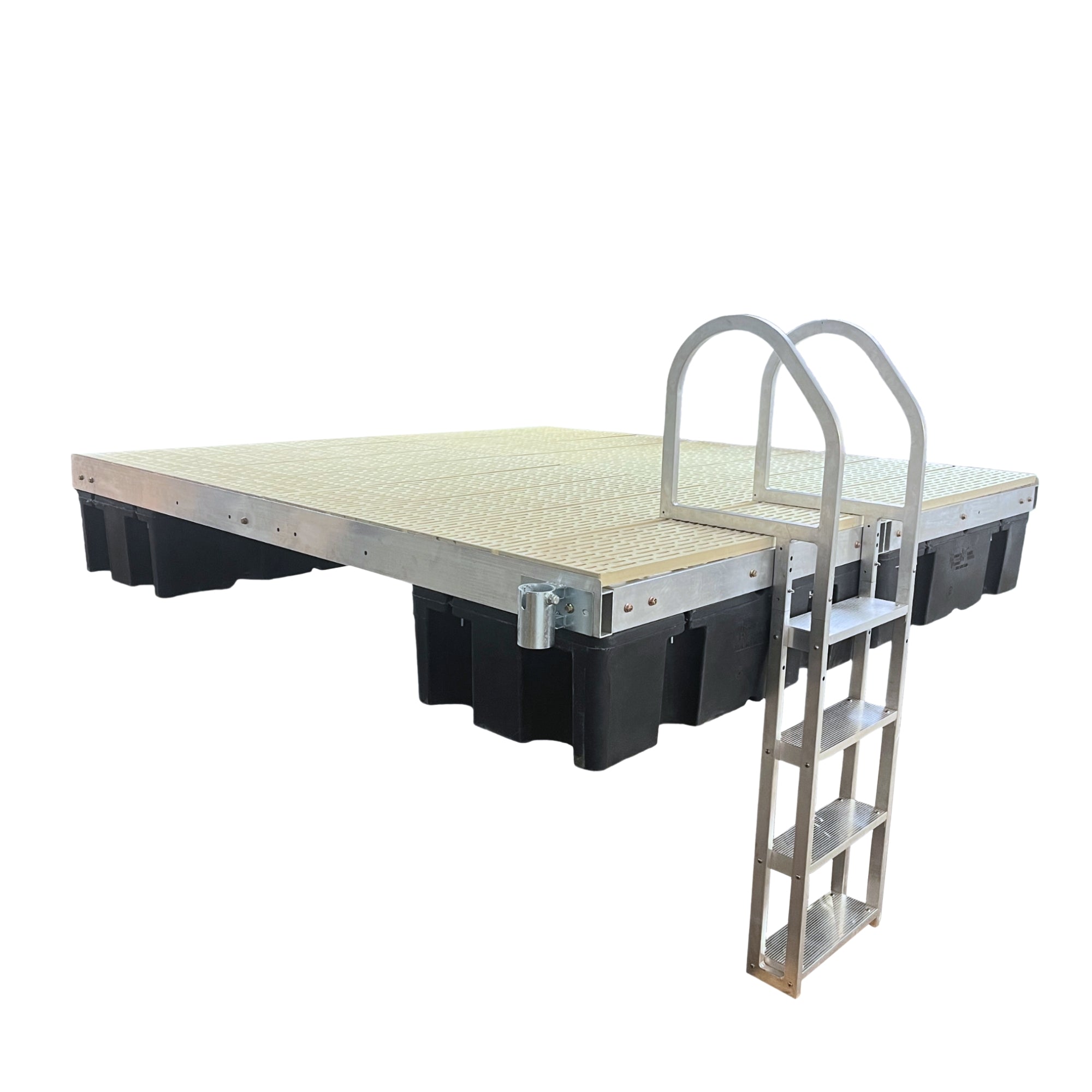

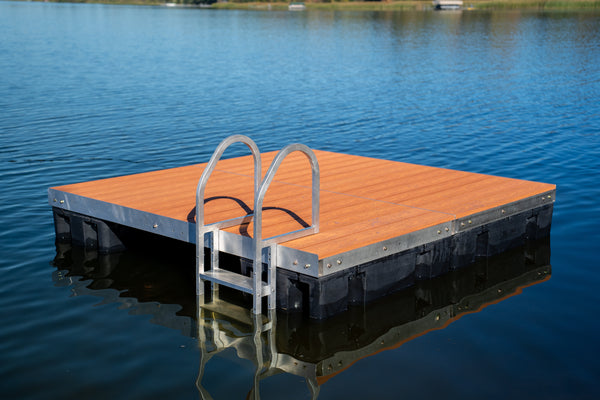

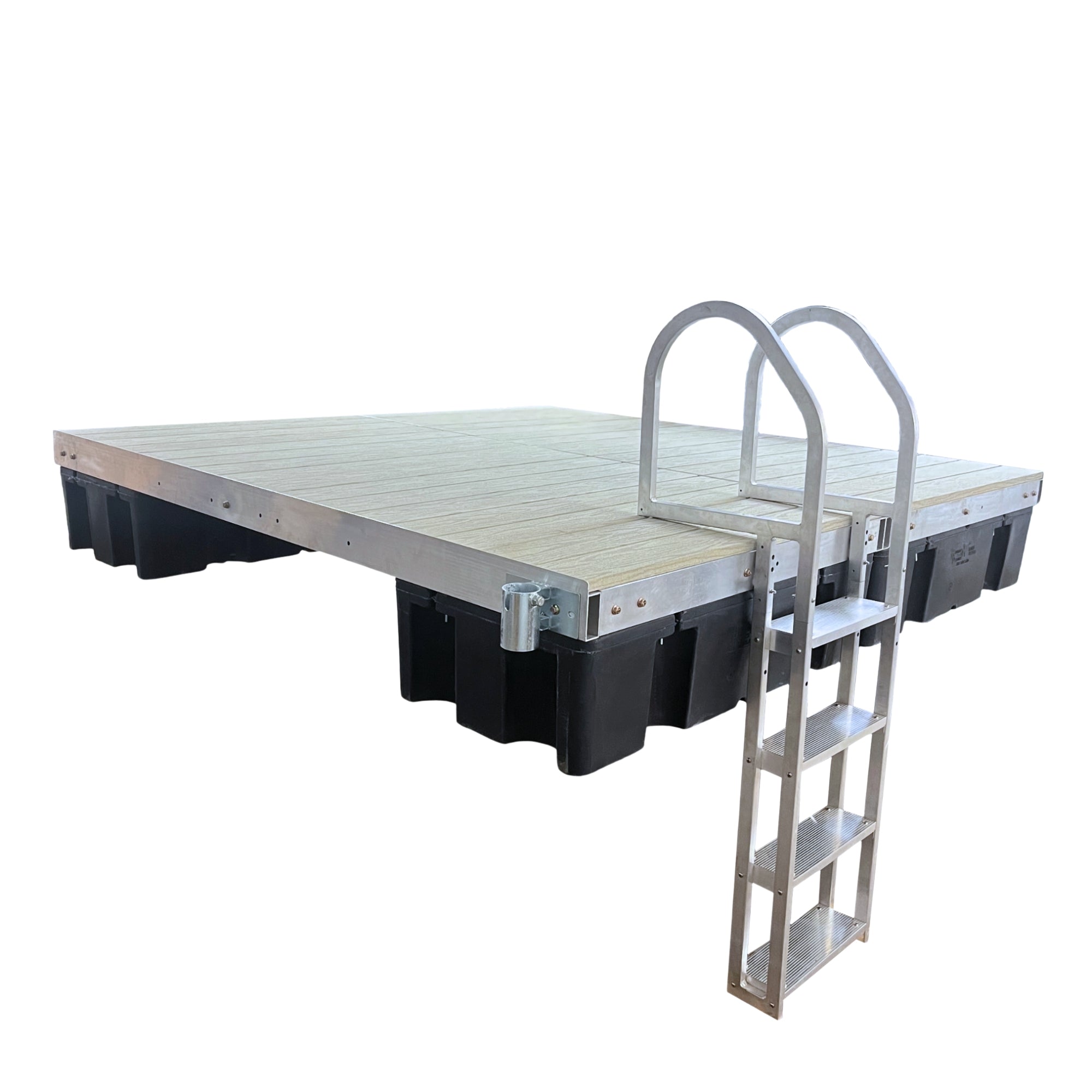

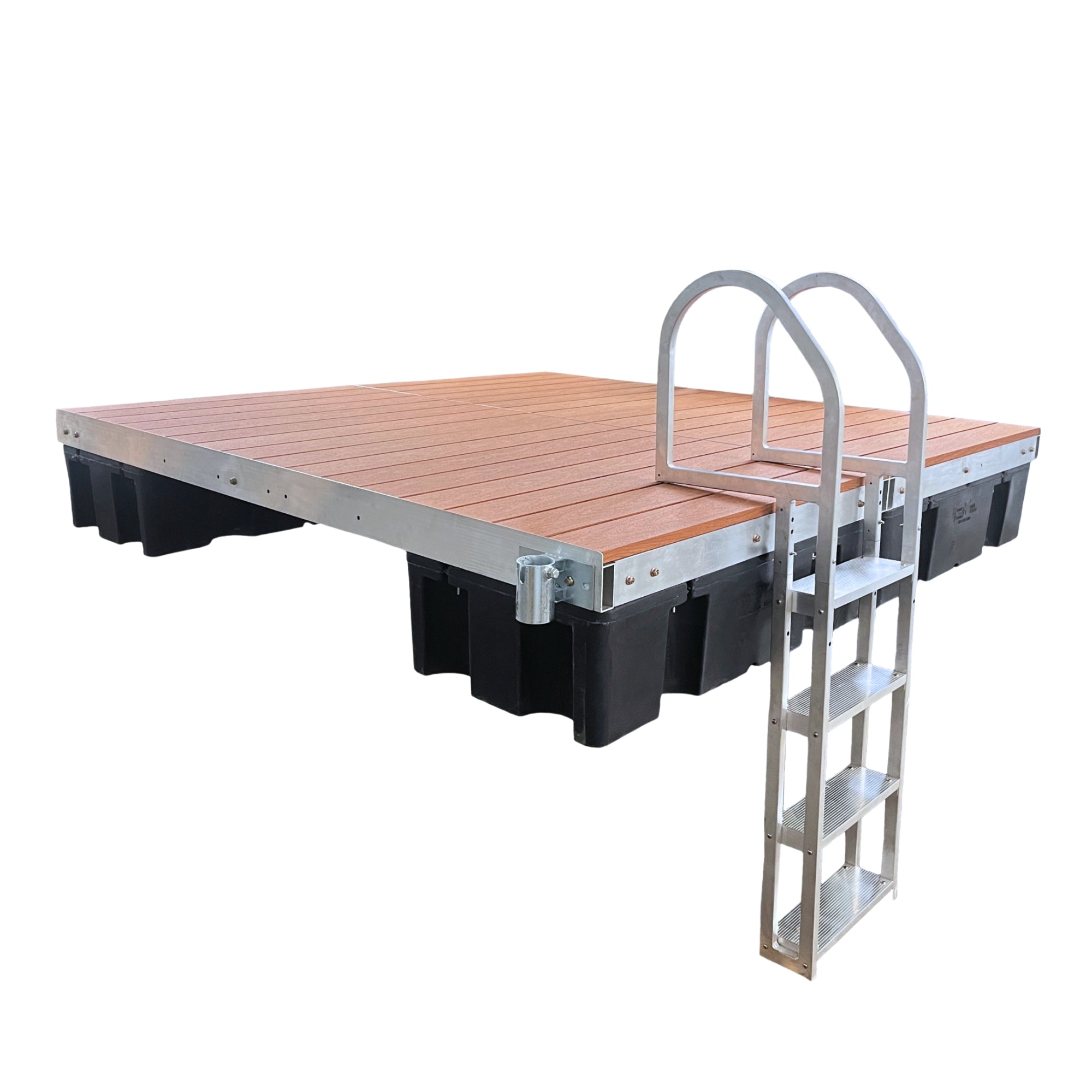

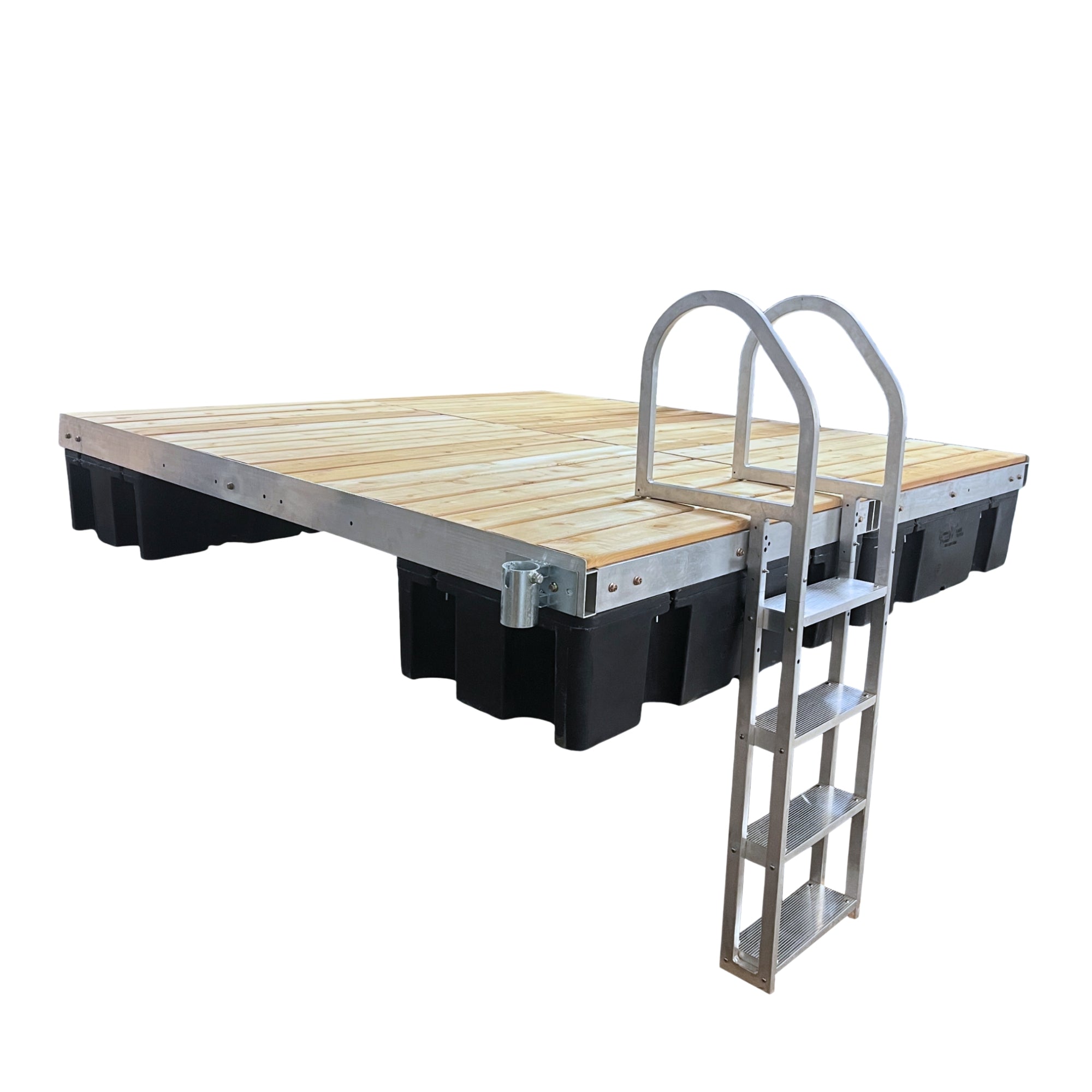

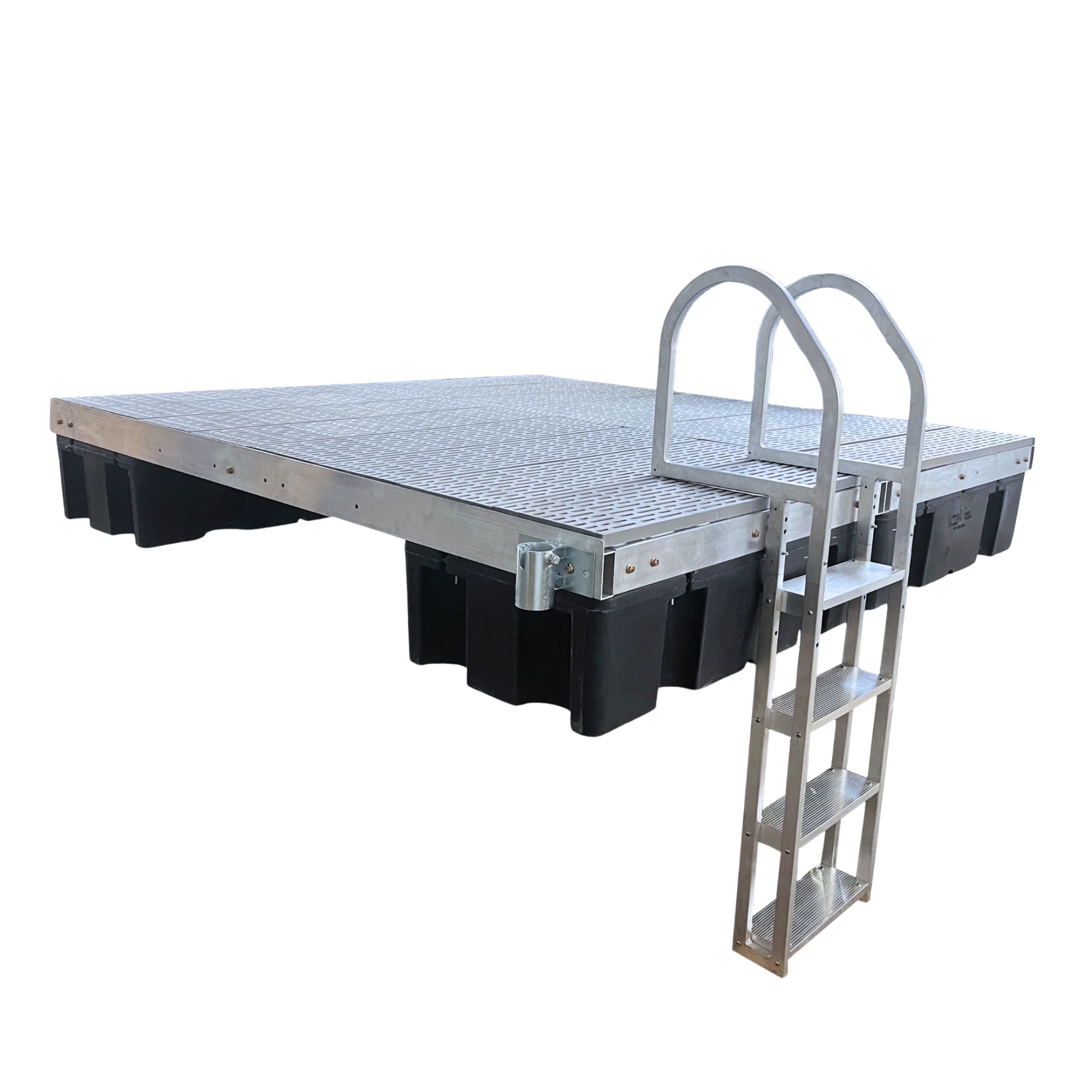

This 8ft x 8ft Low-Profile Floating Dock is the perfect swim raft—ideal for anchoring offshore as a swim destination, sunbathing spot, or diving platform. Built from our Low-Profile series frame, this aluminum swim dock keeps the deck close to the water for easy access after a swim.

Sale price $2,361.80

Shipping calculated at checkout

SKU: D-22210
Categories:

Description

8′ x 8′ Swim Raft – Low-Profile Floating Dock

A compact, stable platform for open-water fun.

This 8ft x 8ft Low-Profile Floating Dock is the perfect swim raft—ideal for anchoring offshore as a swim destination, sunbathing spot, or diving platform. Built from our Low-Profile series frame, this aluminum swim dock keeps the deck close to the water for easy access after a swim, even for kids or kayakers.

The modular frame bolts together and includes premium foam-filled floats and drop-in decking—all in a complete kit, ready for assembly. Whether you're placing it on a calm lake or anchoring in deeper water, this swim raft handles it all with confidence and durability.

Key Features:

  • 8′ x 8′ aluminum Low-Profile frame with marine-grade 6061 aluminum

  • Foam-filled floats (48″ x 24″ x 12″) for buoyant, leak-proof support

  • Low-profile frame design for easier water entry/exit

  • Modular bolt-together construction—expand or reconfigure anytime

  • Complete kit includes frame, decking, floats, and mounting hardware

Looking for more build options? Check out our full range of DIY Low-Profile Floating Dock Sections to create the perfect dock or swim platform for your lakefront.

Specifications

FRAME:

  • Weight per frame: 57 pounds
  • Frame Height: 4 inches
  • Frame Weight Capacity: 45 PSF when constructed as specified
  • Frame Material: Aluminum (Marine Grade 6061-T6)
  • Frame Style: Low Profile
  • Frame Build: Bolt-together
  • Hinge Span: Every 16 feet

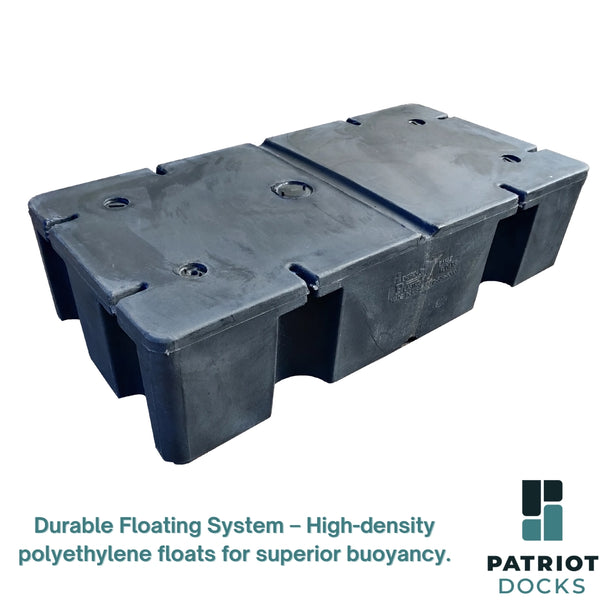

FLOAT:

  • Float Material: High-Density Polypropylene
  • Foam-filled: Yes
  • Float Dimensions: 48x24x12
  • Float Capacity: 390 pounds

DECKING:

  • Decking Panel Measurements: 48x48x1 inches
  • Cedar Panel Weight: 33 pounds
  • Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
  • Poly Panel Weight: 30 pounds
  • Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
  • Aluminum Panel Weight: 25 pounds
  • Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish
  • HARDWARE:
  • Hardware material: Grade 8 Zinc-plated
  • Hardware size: 3/8" or 1/2"

Features

DOCK FRAMES: Lightweight (57lbs); Low profile (4" tall, easy watercraft access); No-rust aluminum; Bolt-together sections; Modular (bolt or hinge one frame to the next); Nests decking (frames in drop-in decking panels)

FLOATS: Foam filled for leak protection; 780-pound buoyancy rating per platform; Large plastic drums (12" tall); Easy mounting to frame

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame

DETAILS: Ships to most commercial and residential addresses; Complete kit including hardware;

Components
  • (2) 4x8 Floating Dock Frame with Hardware
  • (4) 4x4 Decking Panels with Hardware
  • (4) Floats with Hardware
  • (1) 4" Bolt Kit

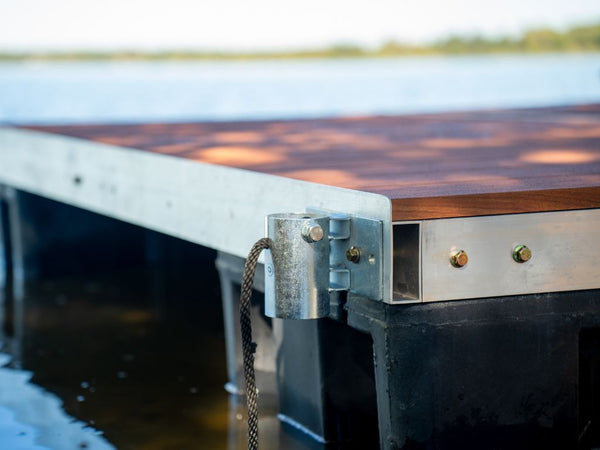

  • (1) Piling Sleeve
