Dock Hinge Kit

Boat Dock Hinges | Dock Frame Connection Kits

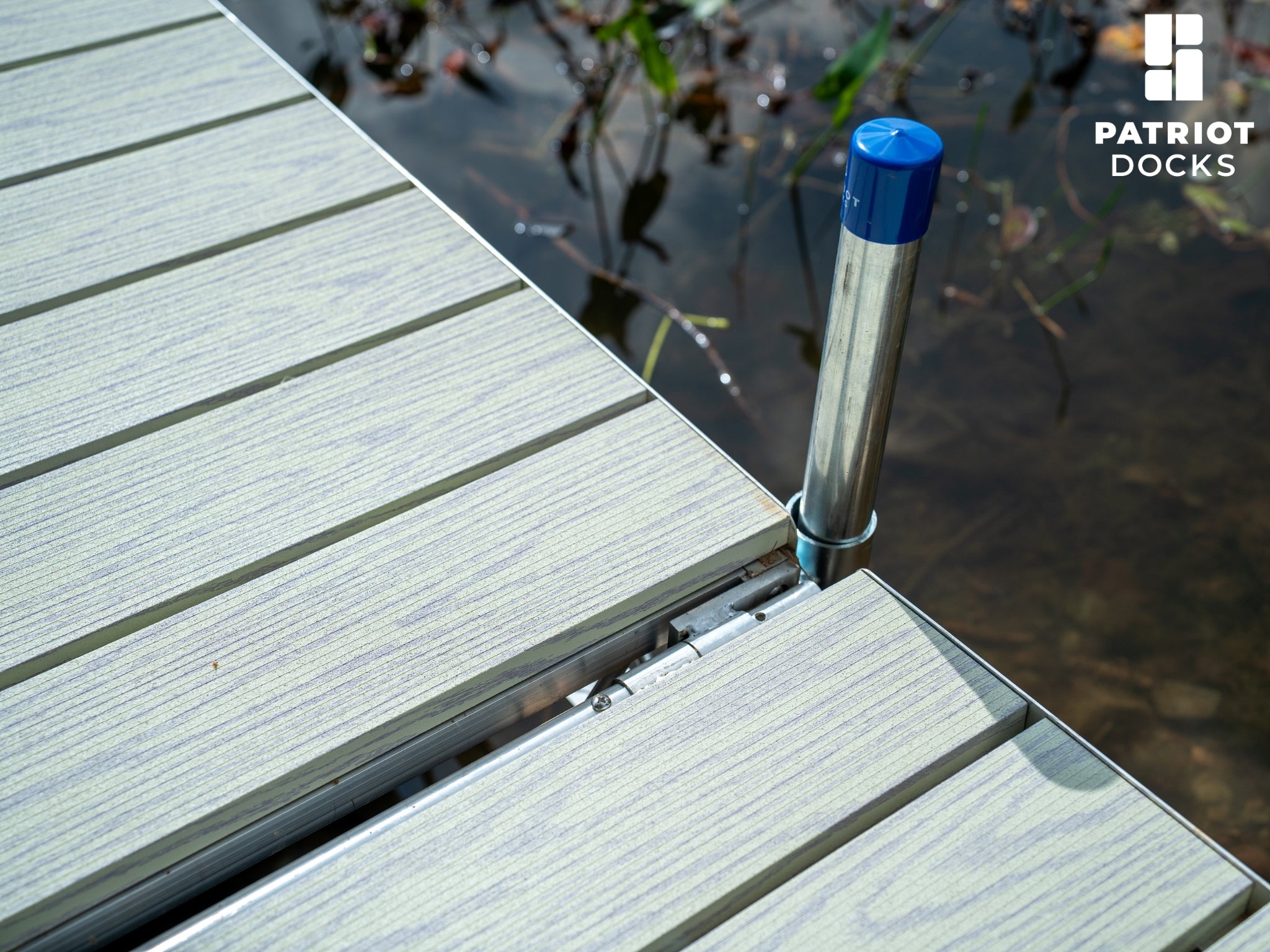

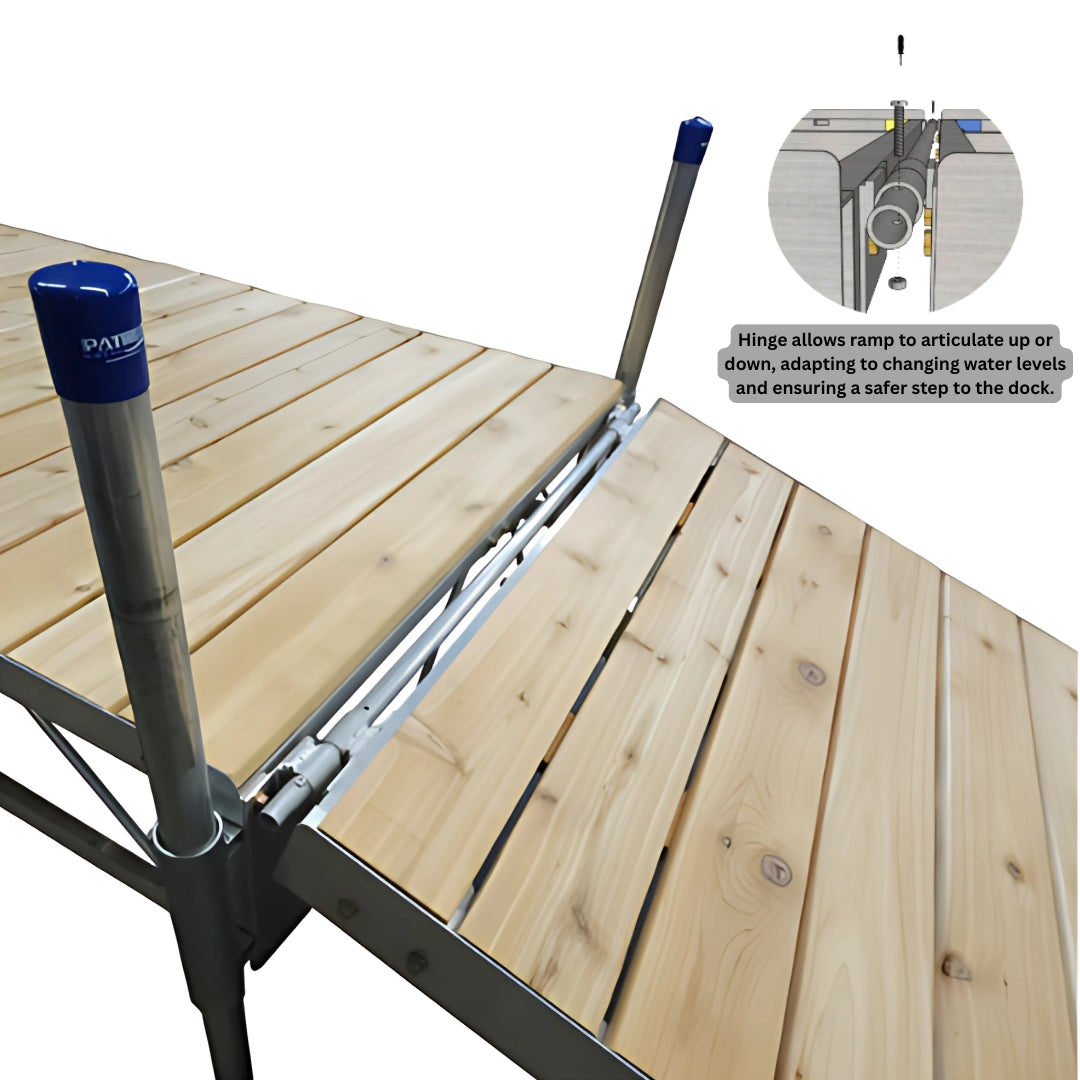

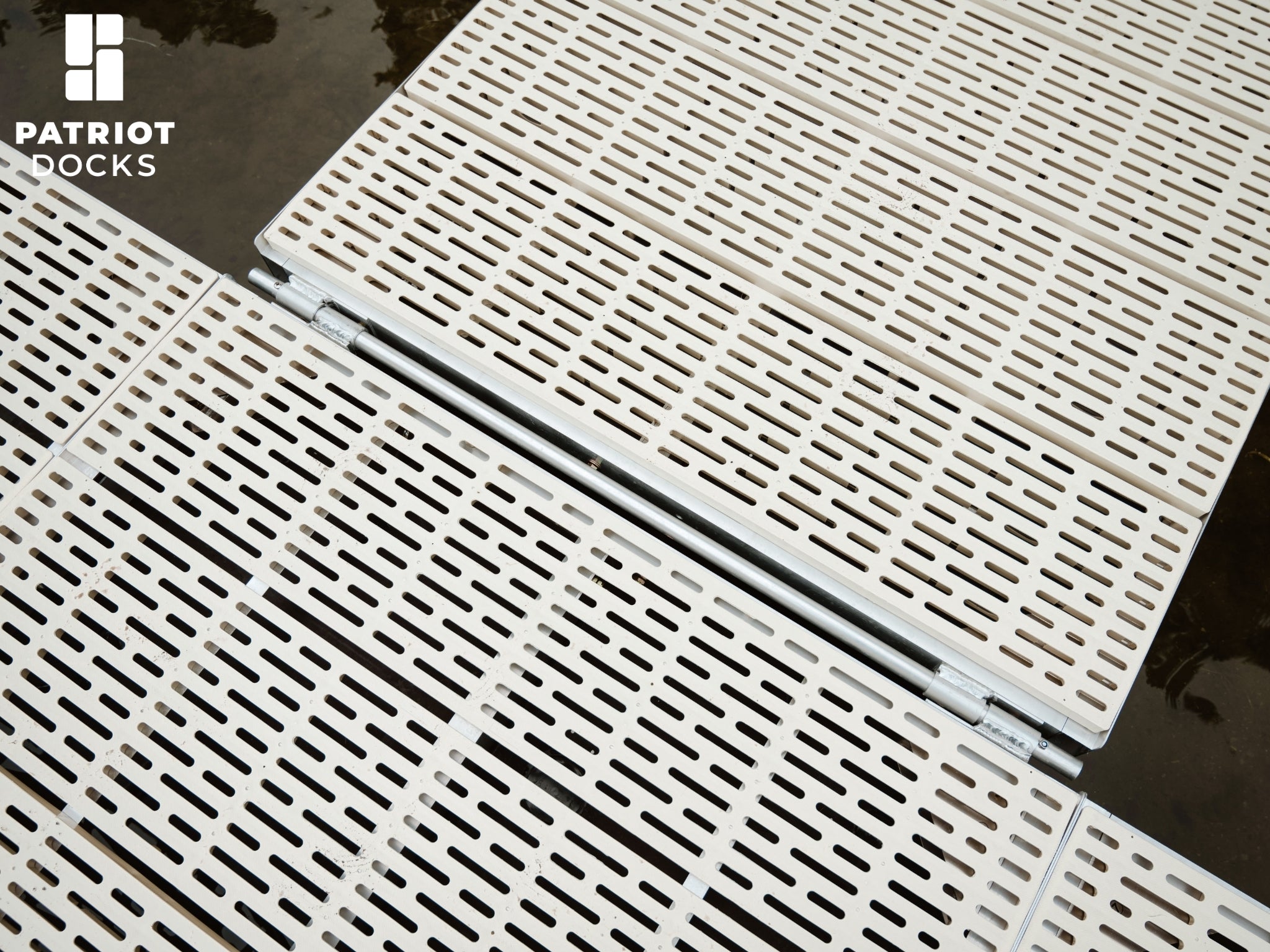

Securely connect sections of your dock while allowing natural articulation with the Patriot Boat Dock Hinge Kit. Designed for floating dock systems or shore ramps, these hinges accommodate movement caused by shifting weight and wave action — preventing structural stress and ensuring smooth, stable transitions between dock sections or from a floating dock to a stationary ramp or pier.

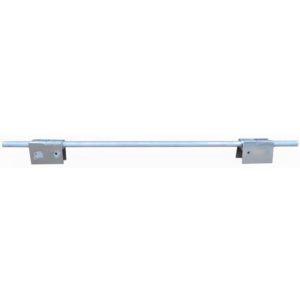

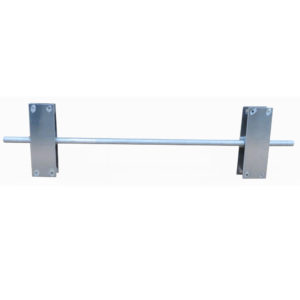

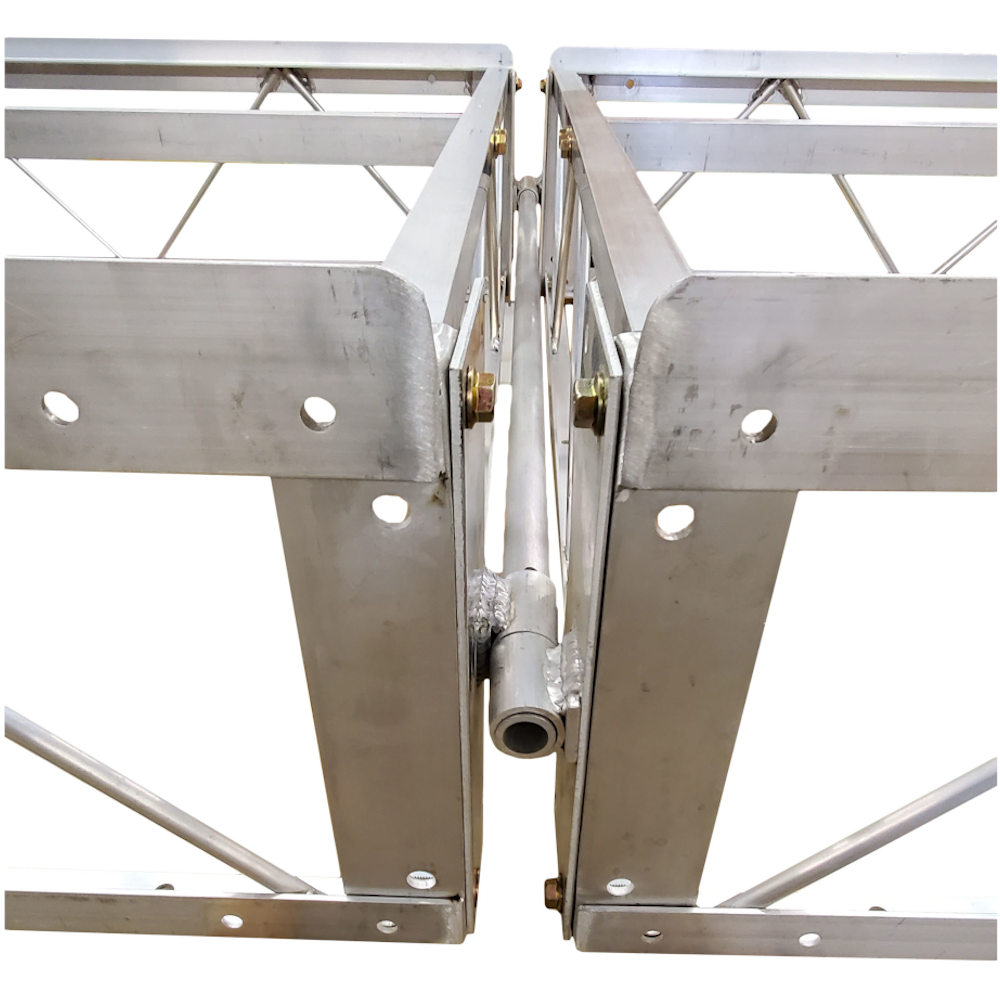

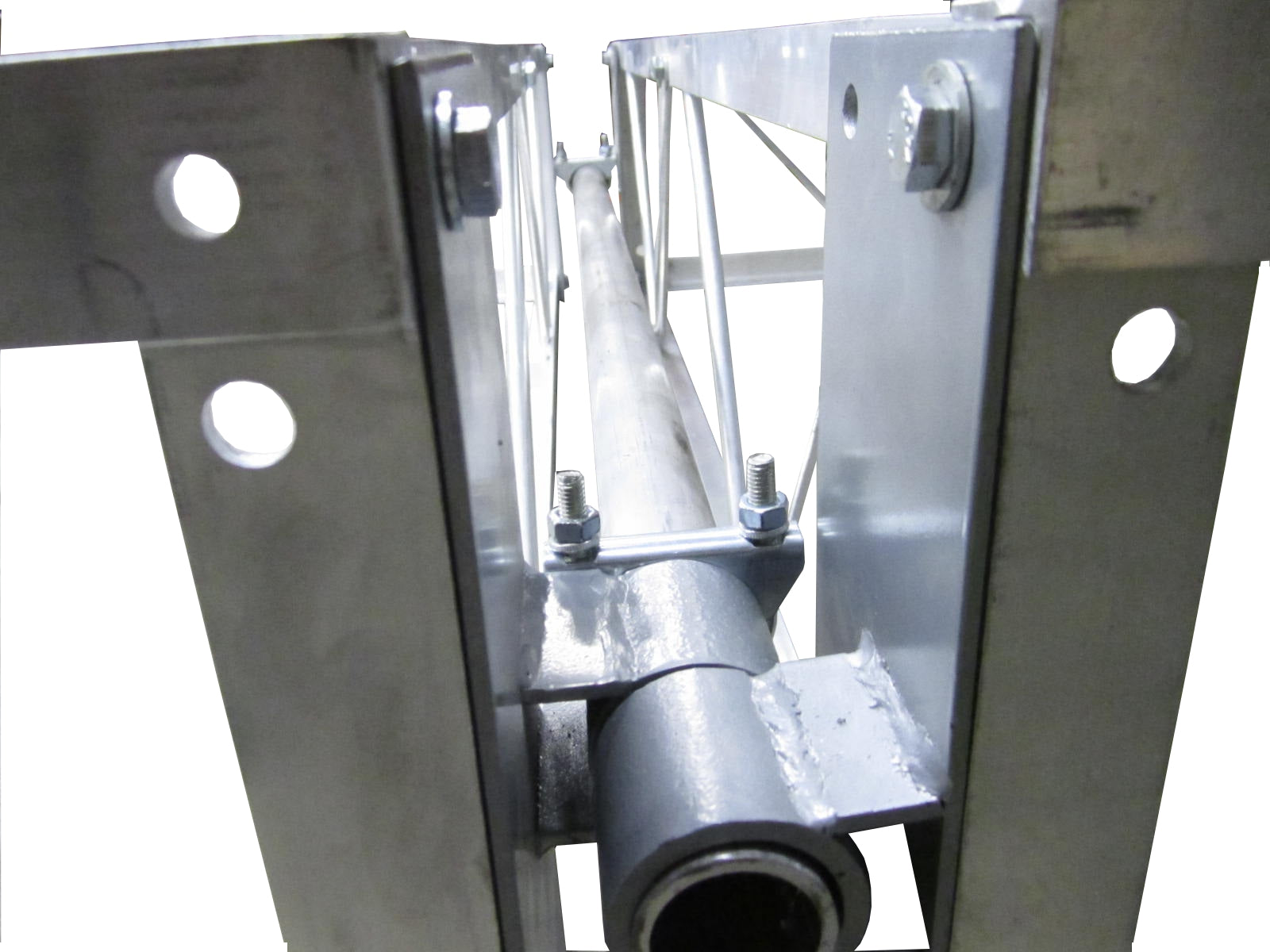

These 48″ aluminum hinges bolt to both dock frames and connect using a sturdy hinge pipe, creating a reliable pivot point that absorbs pressure and prevents dock lift on uneven loads. Every floating dock benefits from a hinge — especially where floating frames meet stationary sections or where wave conditions demand flexibility.

Hinge Kit Options:

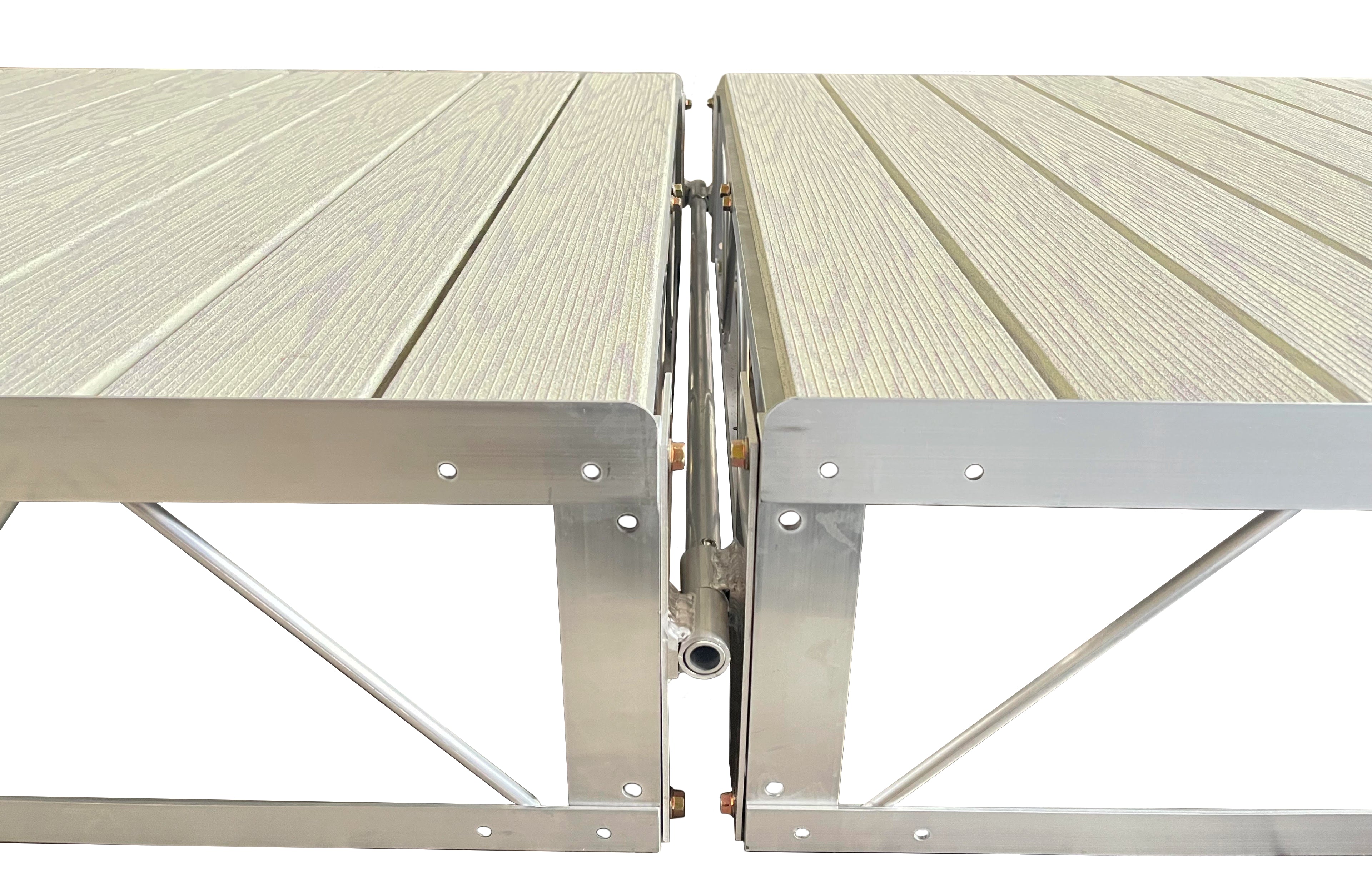

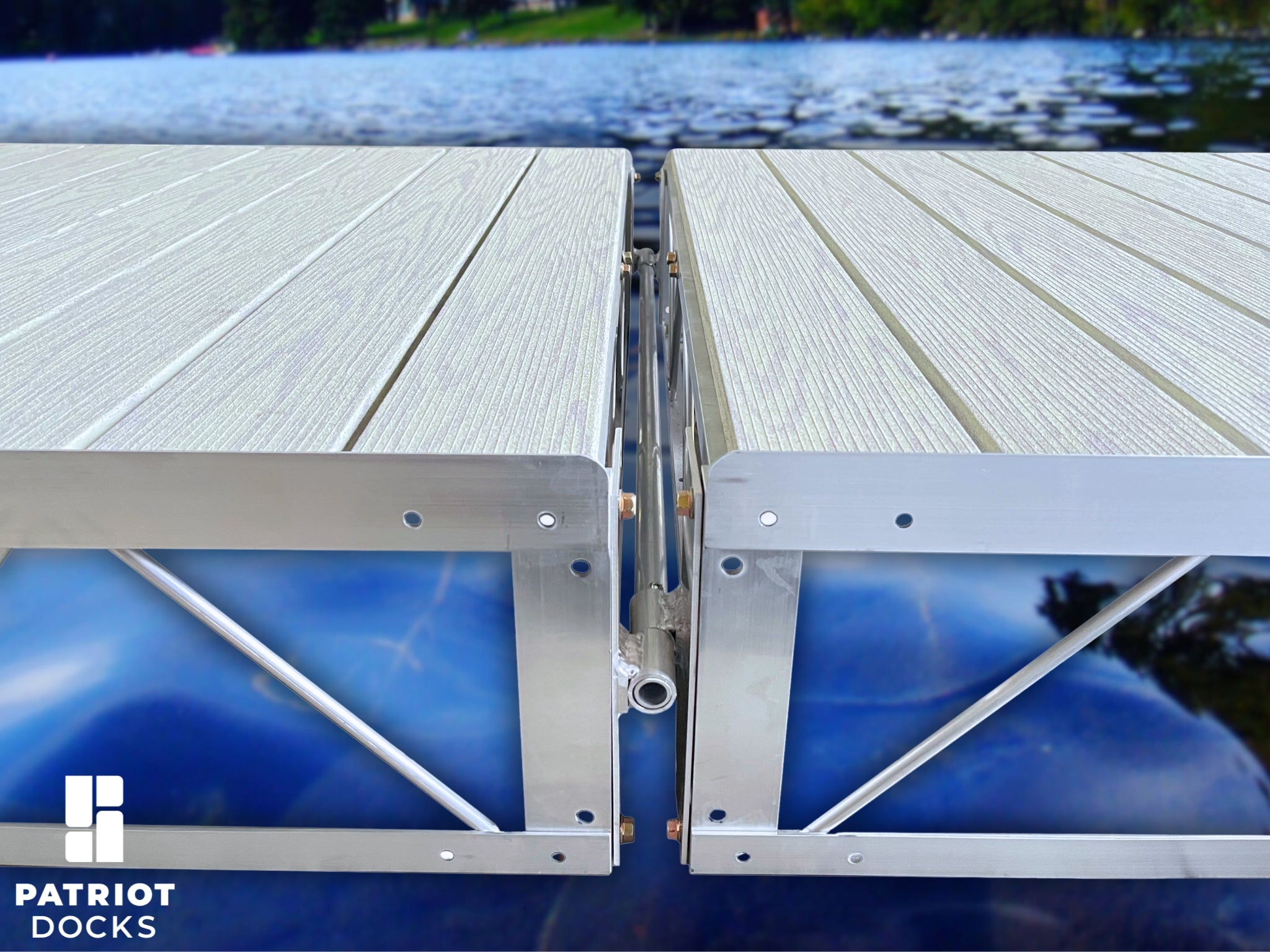

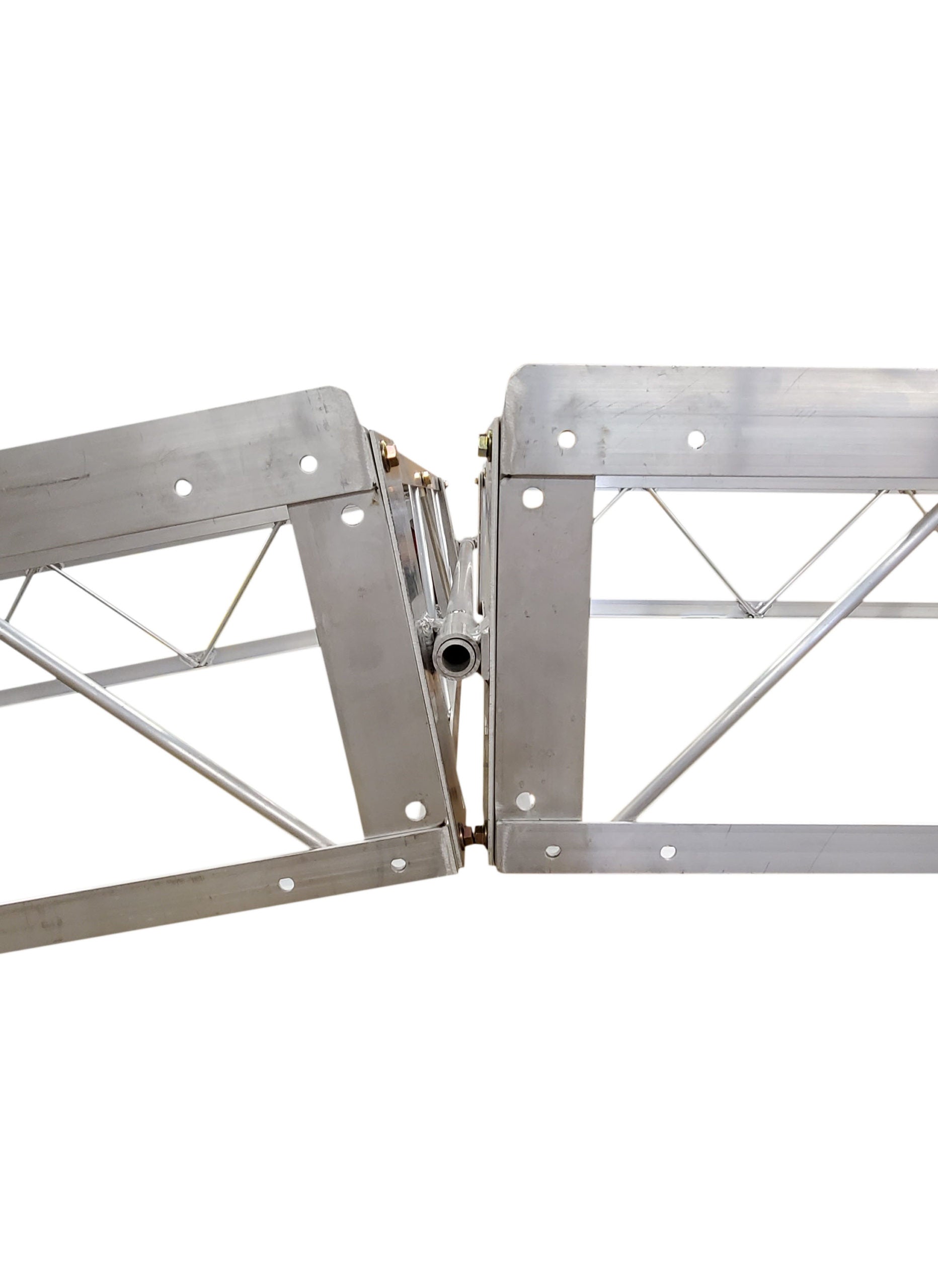

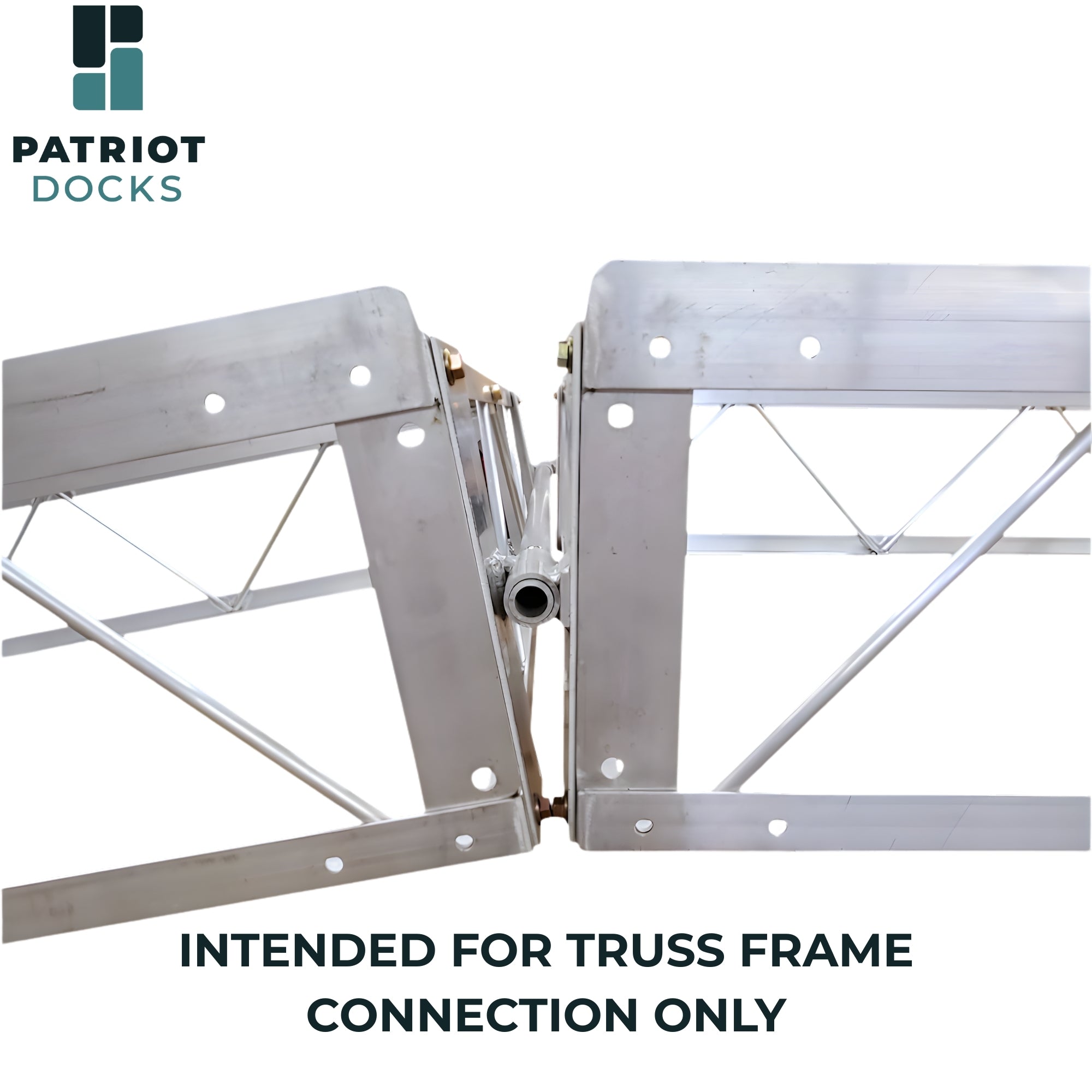

• Truss Hinge Kit – For 13″ tall Truss Frames only

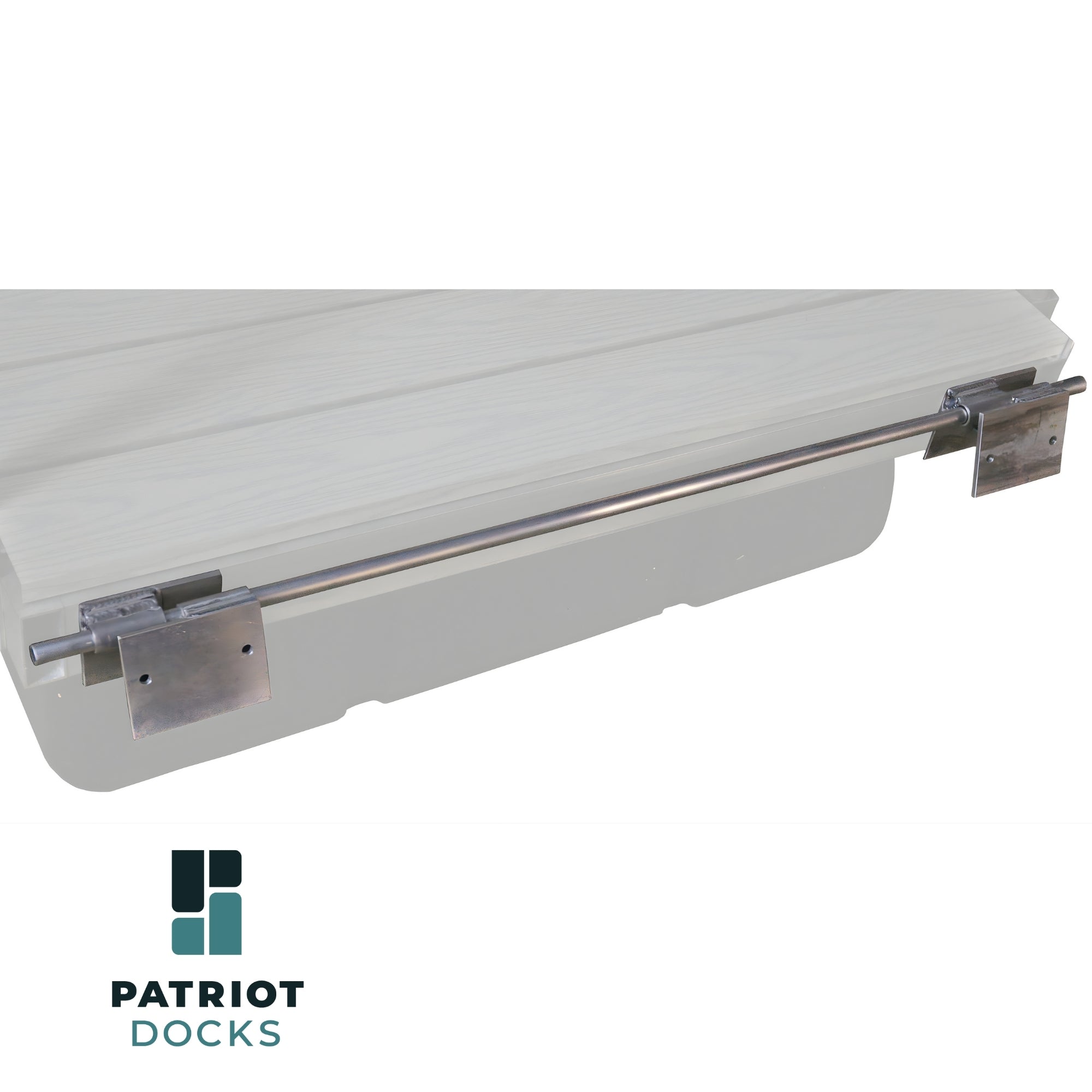

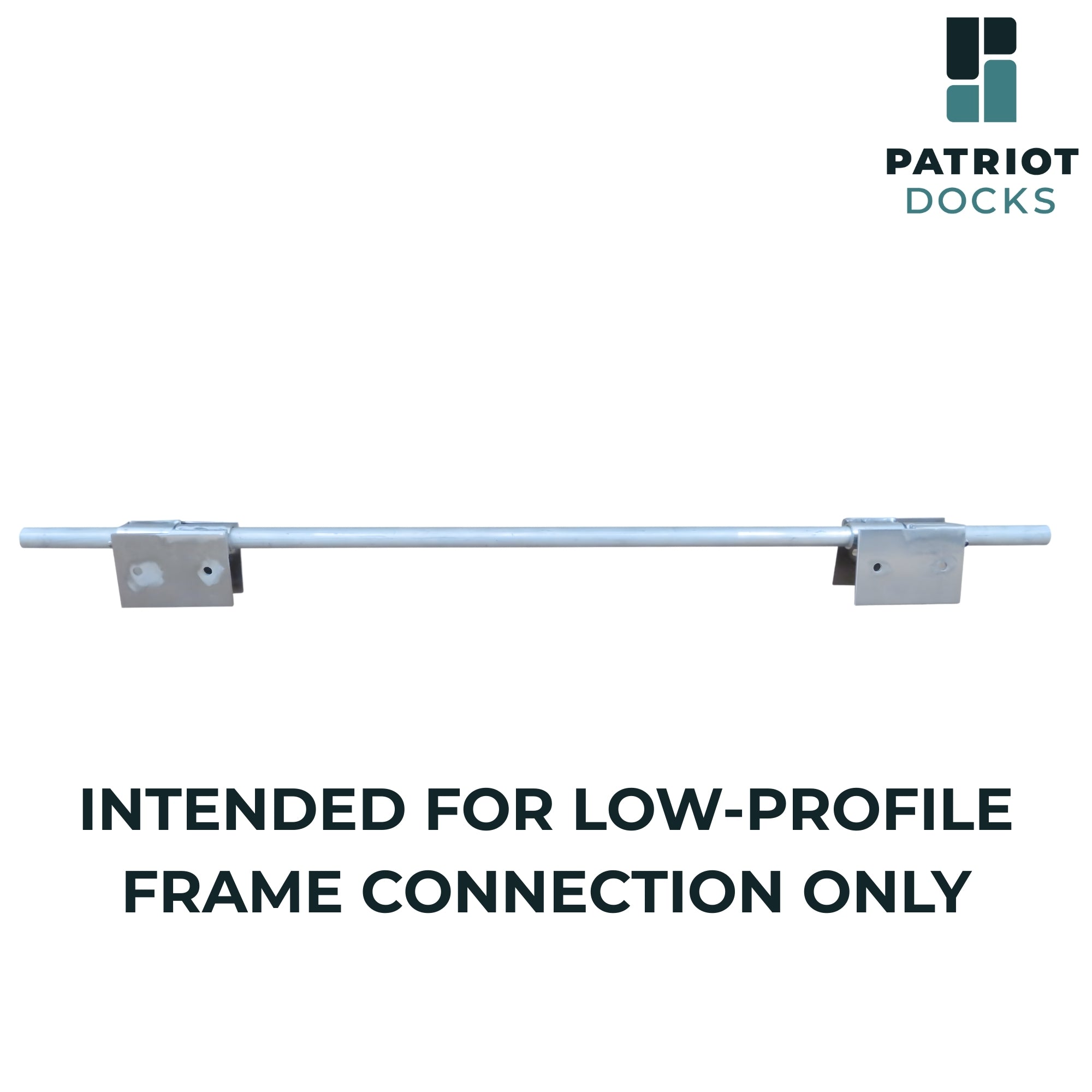

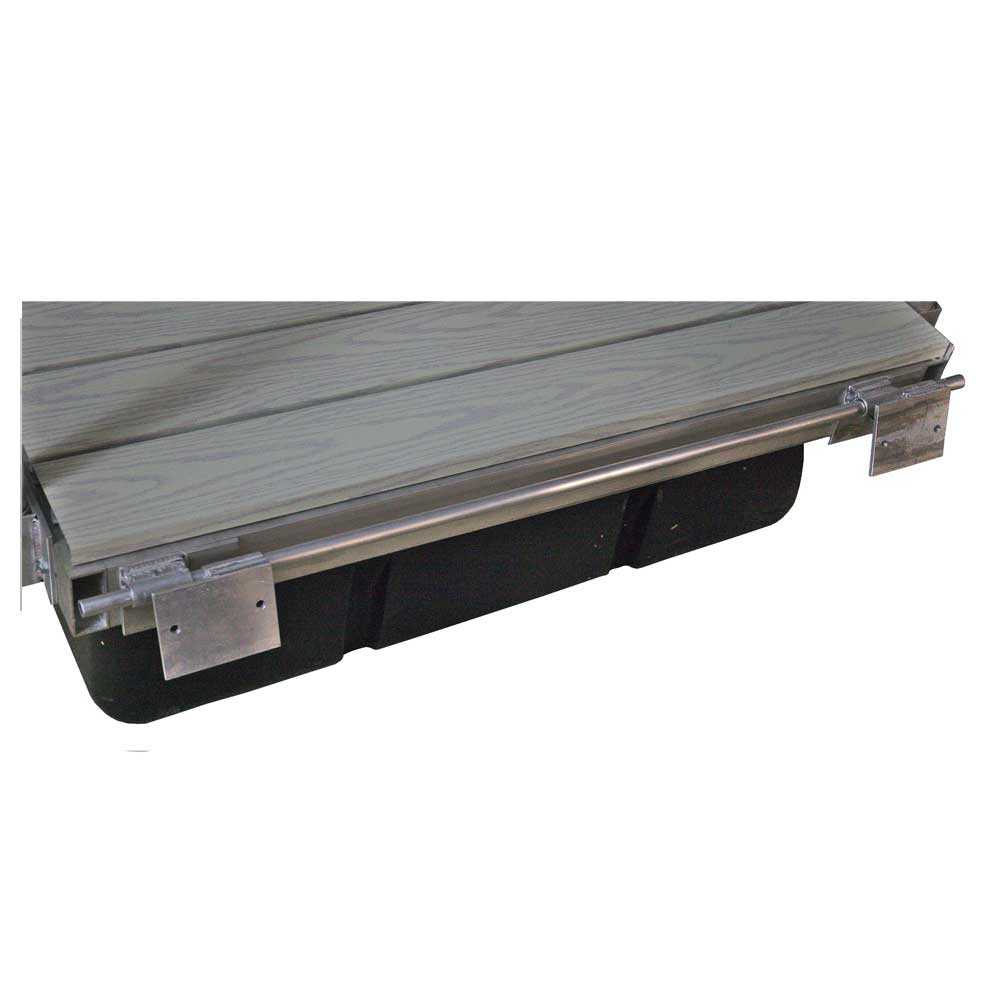

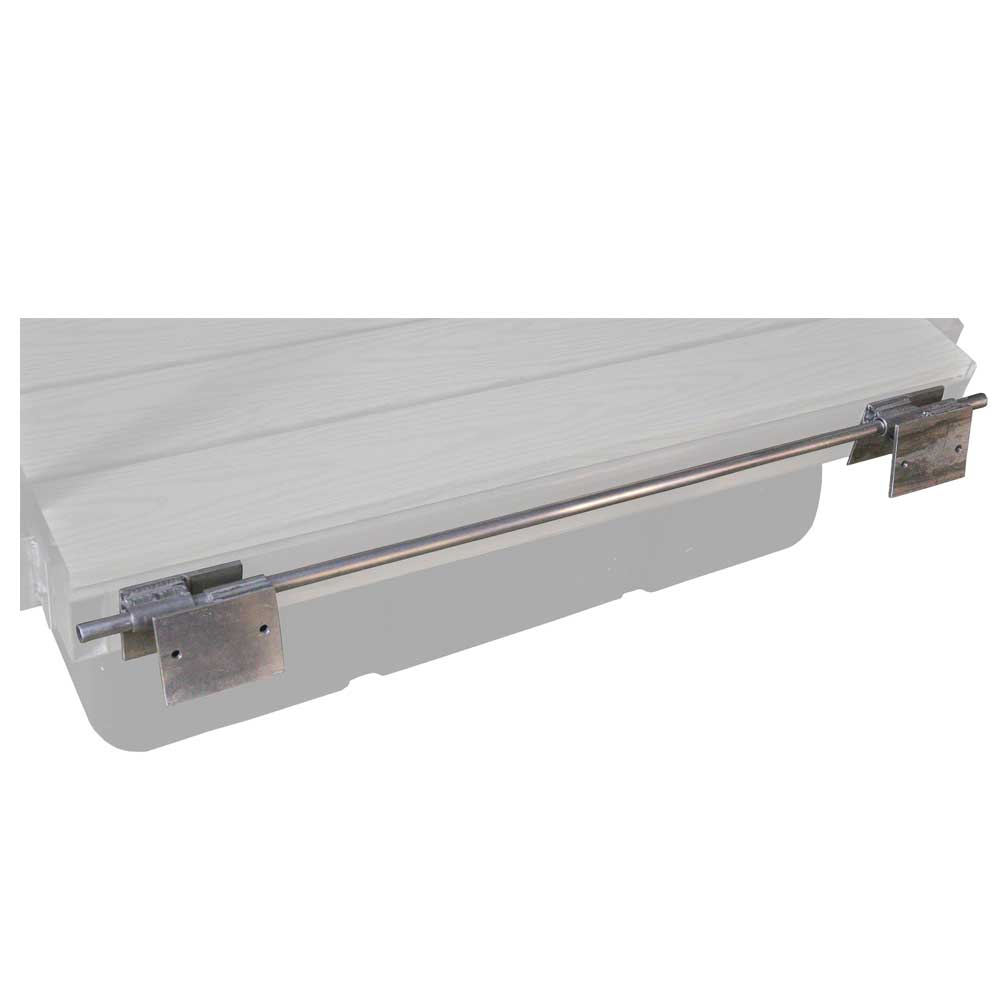

• Low-Profile Hinge Kit – For 4″ tall Low Profile Frames only

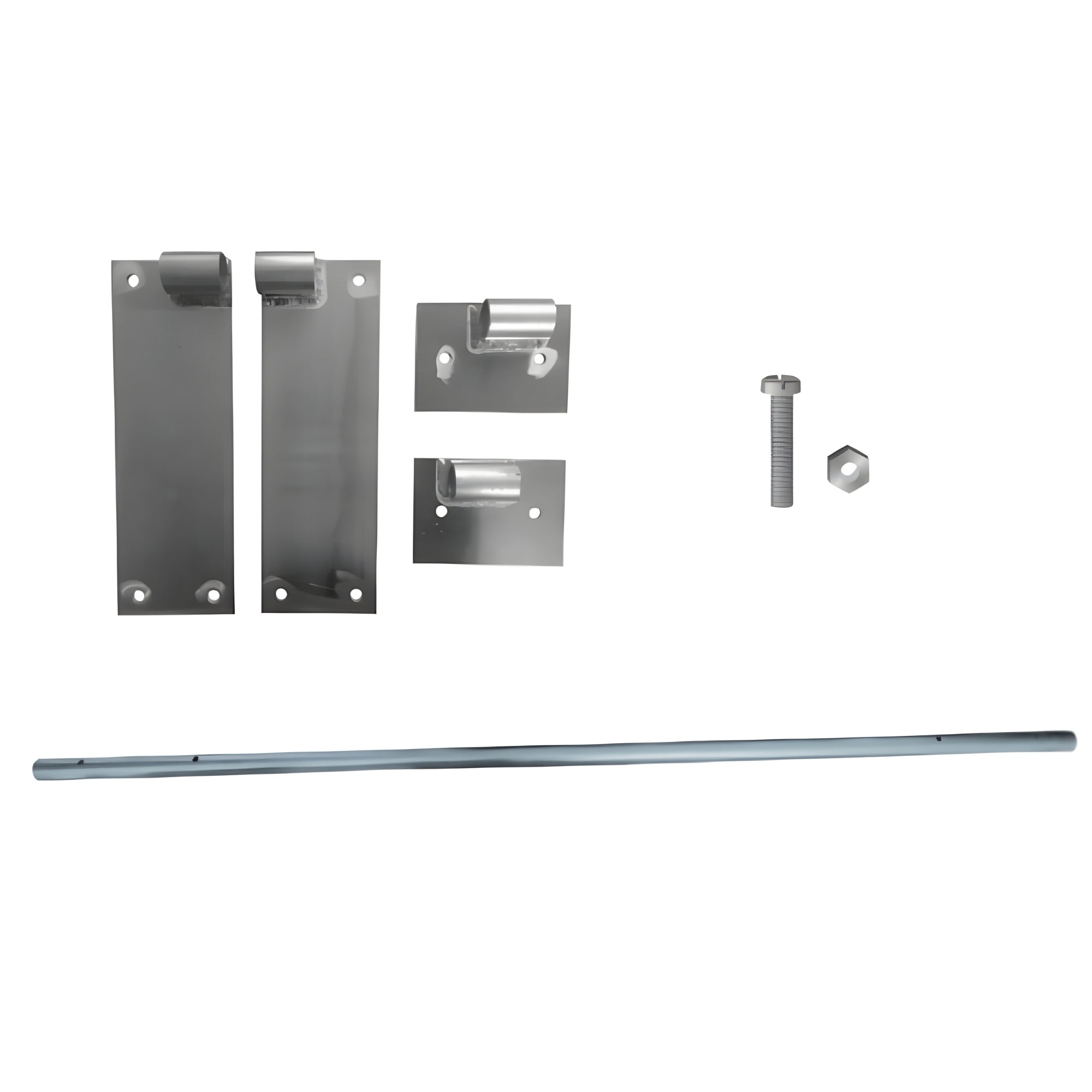

• Truss to Low-Profile Hinge Kit – For transitions between a Truss Frame and a Low-Profile Frame

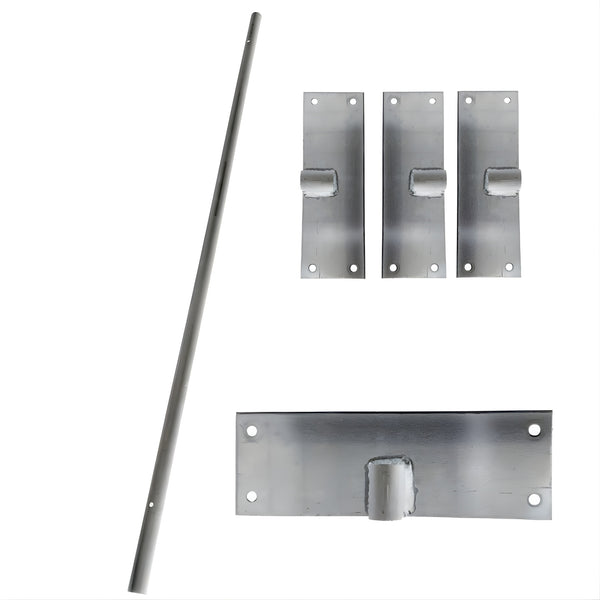

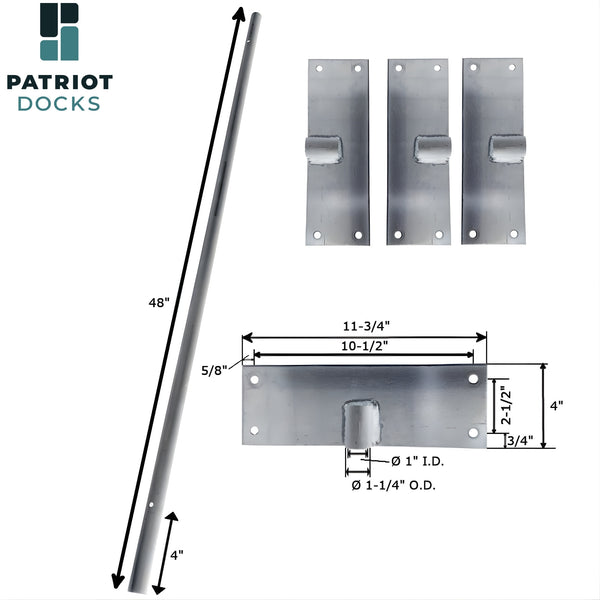

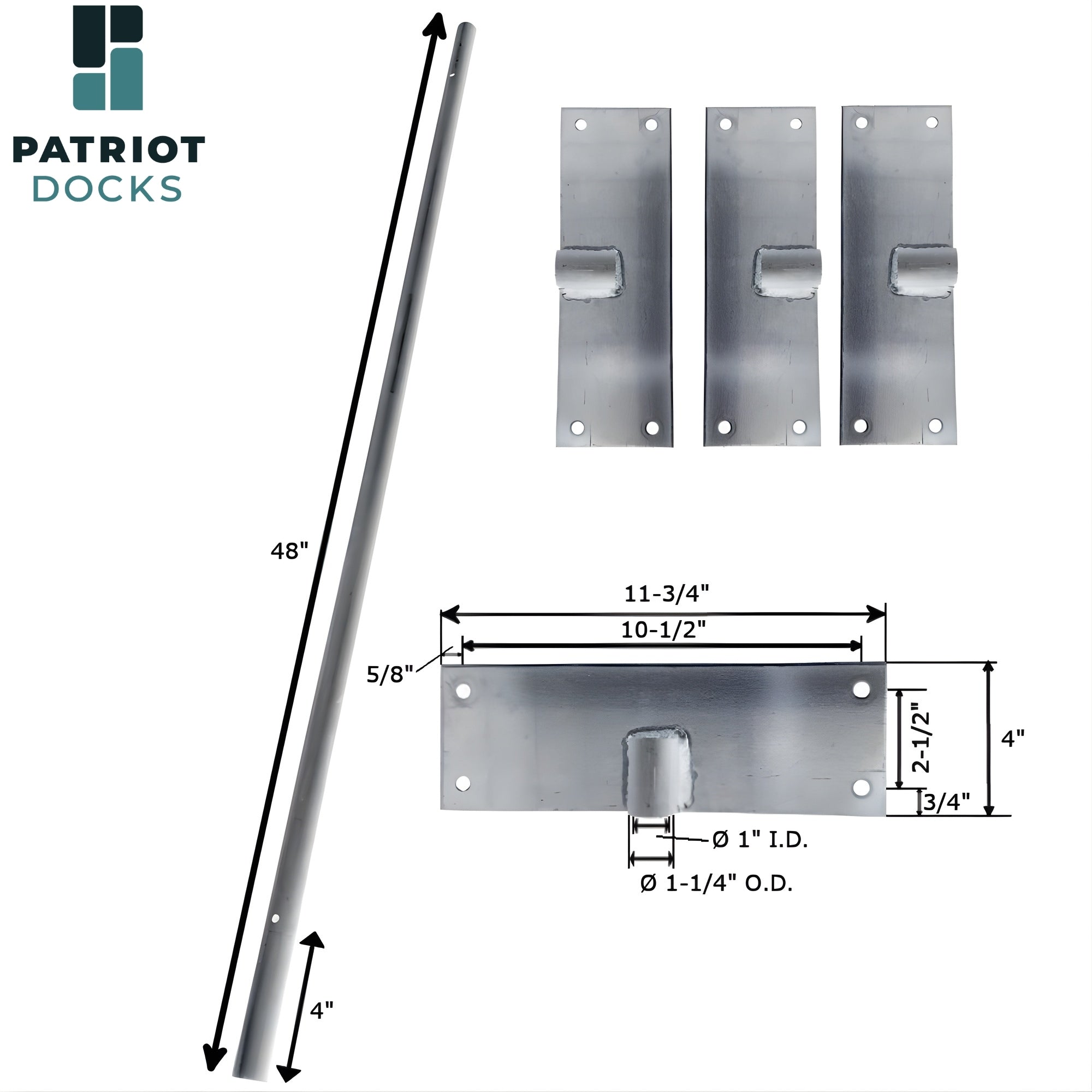

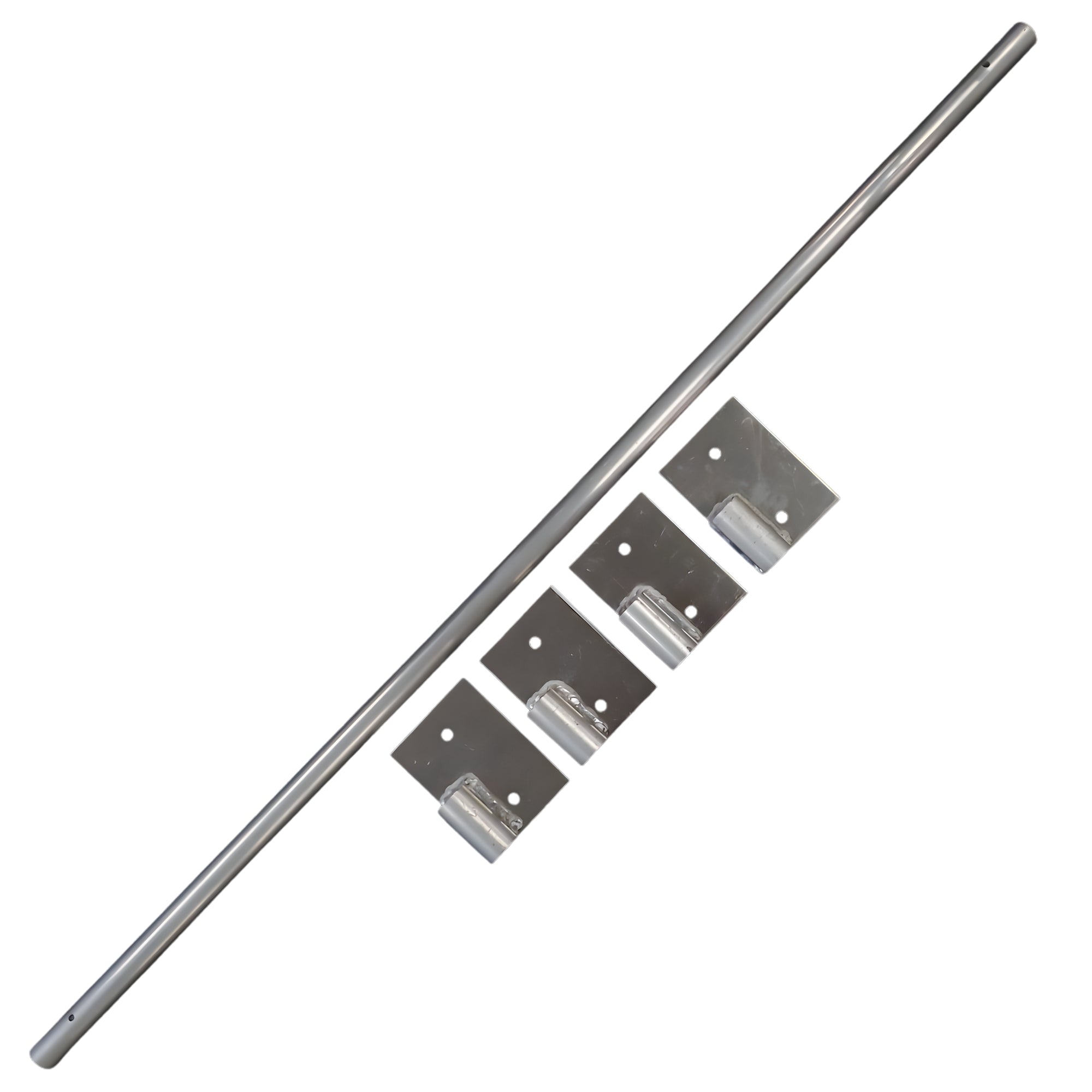

Includes:

• (4) Hinge Brackets

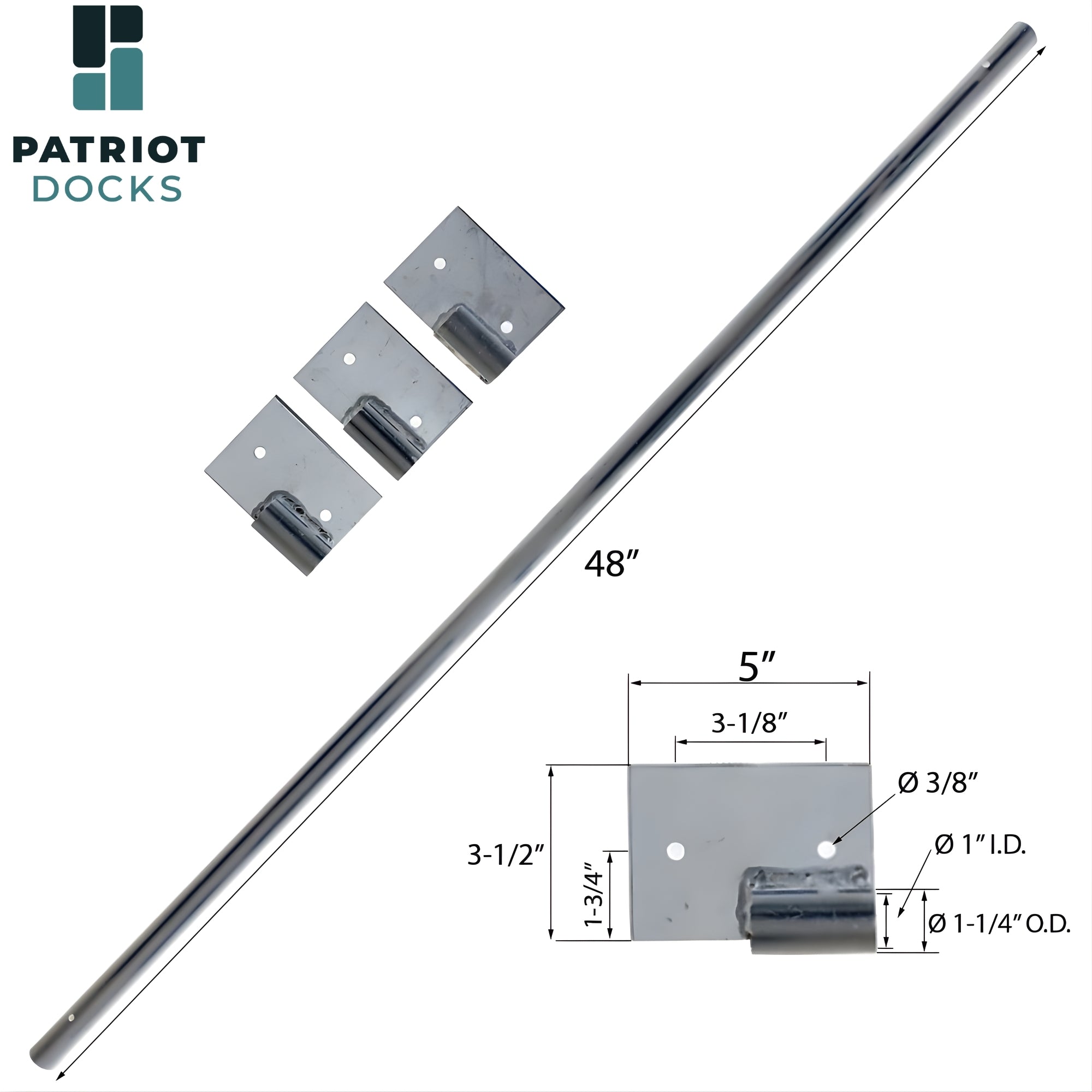

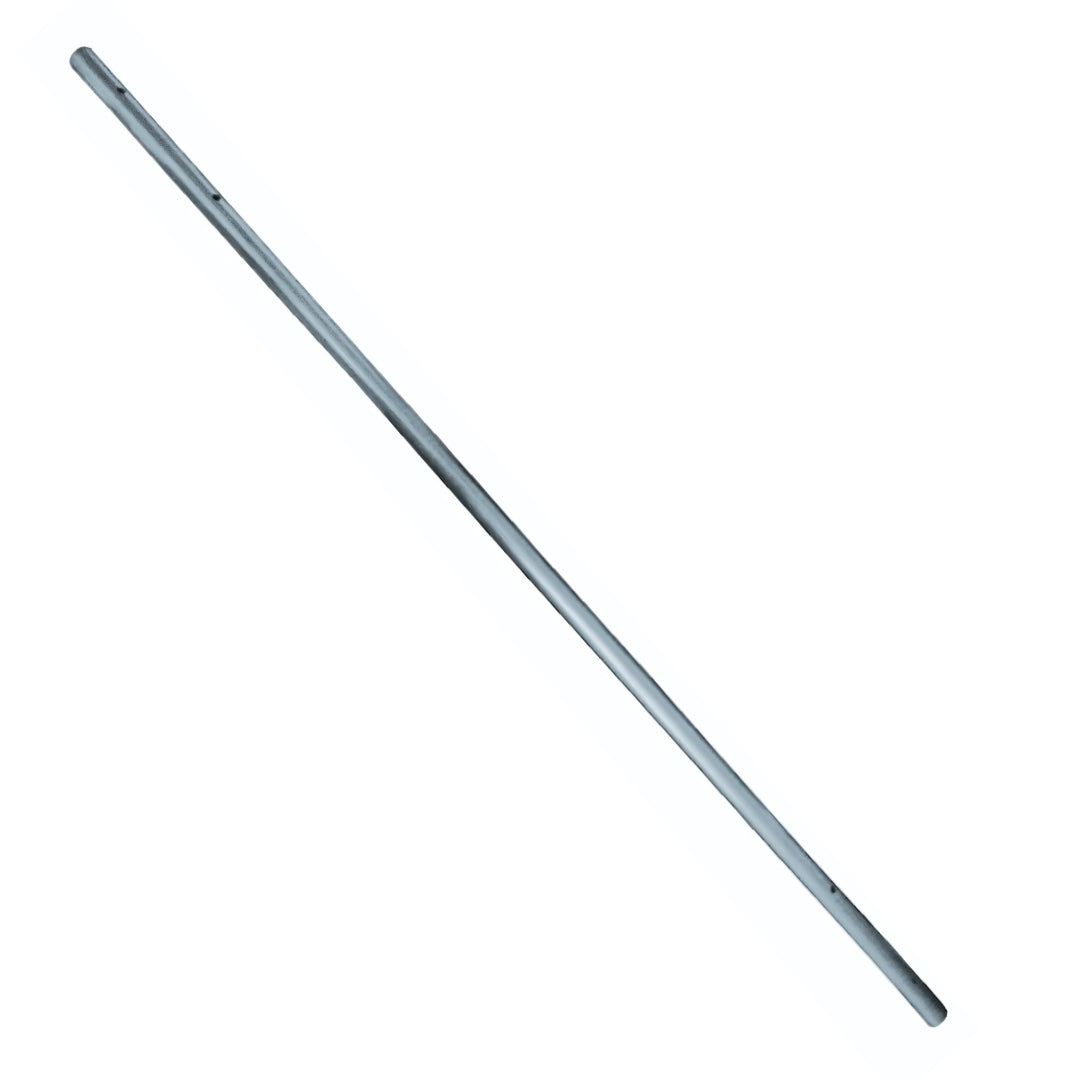

• (1) 4 ft. aluminum hinge pipe (1″ Schedule 40)

• (2) Clamp screws

Note: End Rail not included for Truss Frame installs. Required for both sides of a Truss-to-Truss connection.

Compatible With:

• Patriot Docks Truss Frames (13″ tall)

• Patriot Low-Profile Frames (4″ tall)

• Custom or existing docks with matching frame dimensions

Ensure a secure, stress-free dock connection and let your floating system move naturally with the water.
