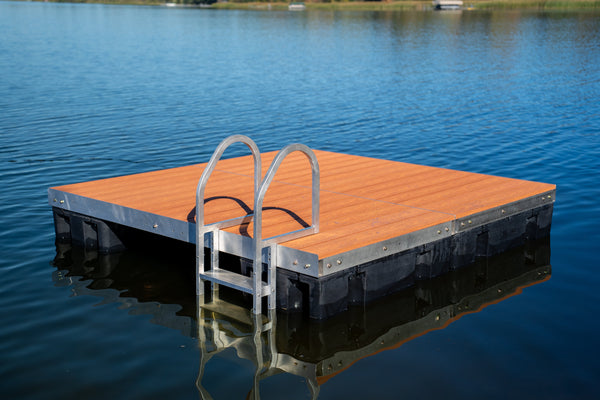

Floating Dock Design: How to Plan the Right Size and Layout

Most people start planning a floating dock by picking a length. Forty feet sounds about right, so that becomes the plan, and everything else gets decided later.

Length is usually the least important of the four dimensions that determine whether you like your dock.

The ones that matter more are how high the deck sits above the water, how wide the flotation is, and what shape the layout takes. Those three decide whether the dock feels solid underfoot, whether you can get in and out of a kayak without a wrestling match, and whether a passing wake sends your coffee across the deck.

This guide walks through how those dimensions actually behave in the water, with real numbers from a standard modular floating dock, so you can plan a layout that fits how you use your waterfront.

Start With the Water, Not the Dock

Before any dimension gets picked, two site facts drive everything else.

The first is how much your water level moves. Not today's level. The spread between spring high and late-summer low, and in reservoirs, the drawdown. This single number decides whether a floating dock is even the right choice and how long your shore ramp needs to be.

The second is what you do at the dock. Loading a pontoon, launching kayaks, fishing, swimming, and sitting with a drink all want different heights and different widths. Most people do several of these, which is why shape matters more than length.

Write both down before you shop. Everything below builds on them.

Dock Height: How Close to the Water Should You Be?

Floating dock height is not something you choose from a menu. It is the result of how much flotation you have under the frame and how much weight is sitting on it. The technical word is freeboard, and it changes every time someone steps on the dock.

Here is the math, and it is simpler than most people expect.

Two separate numbers stack up to give you deck height. The float hangs below, the frame sits on top, and people mix them up constantly.

The float is the same on both of our floating programs. It measures 48 by 24 by 12 inches, and that 12 inches is depth below the frame, not the height of the dock. The frame is the part that changes. A low-profile frame is 4 inches deep including the decking lip. A truss frame is 13 inches.

Start with how far the floats sink. Two of them present about 16 square feet of surface to the water, and fresh water weighs roughly 62.4 pounds per cubic foot, so every inch that section settles displaces about 83 pounds.

That gives you a rule you can use while planning:

On a standard 4 ft by 8 ft floating section, roughly every 83 pounds pushes the dock down another inch.

A low-profile section with decking installed sits with only two or three inches of the 12 inch float below the surface. Add the 4 inch frame and the walking surface lands somewhere around 13 or 14 inches above the water. Step on it and you personally sink it about two and a half more inches. Three people and a cooler on one section costs you another five.

Put those same floats under a 13 inch truss frame and the deck rides about nine inches higher before you account for the heavier frame, which puts a truss floating dock somewhere in the low twenties. Same floats, same 83 pounds per inch, a very different dock to stand on.

Neither height is better. They are built for different water. Here is how that plays out.



Kayaks, Canoes, Paddleboards, and Rowing Shells

Paddlers want the deck as low as possible. Getting into a kayak from 12 inches is a controlled sit-and-swing. Getting into one from 30 inches is a fall with good intentions.

A low-profile floating frame is genuinely well suited to this, and it is one of the few dock types where the deck height and the water surface are close enough to make a seated entry comfortable. If paddling is your main use, plan for a wide platform at the end rather than extra length, because you need room to sit sideways with your legs over the edge.

Rowing shells are a different animal. Competitive crew programs typically want a purpose-built launch dock with even lower freeboard and clear water alongside the full length of the shell. If you are outfitting a rowing club rather than a family cabin, talk to a builder who specializes in crew docks. A recreational floating dock will work for casual use but it is not the same product.

Pontoons, Runabouts, and Ski Boats

Match the dock height to your boat, not to a number you read somewhere.

Pontoon decks typically sit somewhere between 12 and 20 inches above the waterline. A low-profile floating dock lands right in that range, which is why stepping from a pontoon onto a floating dock usually feels level while stepping onto a tall stationary dock feels like climbing.

Runabouts and ski boats have lower gunwales and a deeper step down. For those, the low deck height is still an advantage, and adding a bumper along the boarding edge matters more than adding height.

Rivers, Current, and Debris

Rivers are where the taller frame earns its money, and it is no accident that floating truss docks are most popular on southeastern river systems.

Current carries things. Logs, branches, mats of vegetation, and seasonal runoff all ride downstream at deck level, and a dock sitting 13 inches off the water takes that debris across the walking surface. A truss frame holding the deck in the low twenties lets most of it pass underneath. The same height keeps commercial and large-boat wake from washing over the deck on busier rivers.

River levels also swing harder and faster than lake levels. Extra freeboard gives you margin on the days the river comes up.

There is a real cost to that height, and it is worth saying plainly. Every inch you raise the deck raises the center of gravity, and a floating structure with a high center of gravity rolls more, not less. A taller dock is not automatically a steadier dock.

The way you pay for height is with width and flotation. That is the trade at the heart of floating dock design. If you need the deck up out of the water, you need a wider flotation footprint and more floats under it to keep the whole thing from feeling tippy. Height and width are not independent choices.

Roofs, Covered Slips, and Why Frame Depth Matters

If you want a roof over the boat, the frame under your feet has to change.

A low-profile floating dock cannot carry a roof, and we would talk you out of trying. A 4 inch frame is shallow because it does not need to be deep. On a straight floating run, the floats support the frame continuously along its entire length, so the frame is never spanning very far between supports. Bolt roof posts to it and you concentrate load at a few points on a frame that was never designed to span between them.

A truss frame is a different structure. At 13 inches deep it is dramatically stiffer in bending, and that depth is what lets it handle two things a low-profile frame cannot.

The first is roof posts. Concentrated loads at post locations need a frame that can carry them out to the flotation.

The second is slips. The moment you cut a slip into a layout, you have a frame spanning an opening with no floats underneath it. That span is the whole reason truss depth exists. Longer covered dock layouts with slips are common on southern rivers for exactly this reason, and they are not something you build on a 4 inch frame.

Two cautions if a covered slip is where you are headed.

Roof material matters more than people expect. Aluminum is the better choice on a floating structure because it puts far less dead load up high, and it does not rust. Steel roofs get built, and they work, but the extra weight sits at the top of the structure where it does the most to make the dock feel unsteady. If you have the choice, take aluminum.

Wind load matters even more. A roof is a sail. On a floating dock that load goes straight into your anchoring, and a covered dock needs a substantially better anchor plan than an open one. Read the floating dock anchoring guide before you commit to a covered layout, and if your site cannot support serious anchoring, a piling-supported structure is the more honest answer.

Which Frame Do You Actually Need?

Most lake owners are better served by low profile. If you are loading a pontoon, launching kayaks, swimming off the end, and sitting out in the evening on water that does not move much, the lower deck makes every one of those easier and costs less.

Truss is the answer when the water works against you. Rivers with current and debris, sites with bigger boats and heavier wake, layouts that need slips, and anything getting a roof. You can see the frame specs for both on our technical data page.

If you are unsure which side of that line your site falls on, describe the water to us before you buy. It is a five minute conversation that saves an expensive guess.

Width Is the Dimension Most People Under-Buy

If you take one idea away from this article, make it this one.

Resistance to rolling does not increase in proportion to width. It increases roughly with the cube of the width. Going from a 4 ft flotation footprint to a 6 ft flotation footprint is a 50 percent increase in width, and it produces something close to three times the resistance to tipping.

That is naval architecture, not marketing. It is the same reason a canoe feels tippy and a jon boat does not.

There is an important distinction hiding in that sentence. What stabilizes a floating dock is where the buoyancy sits, not where the decking sits. A wide deck bolted onto a narrow flotation footprint is just a wider thing that still rocks. To gain stability you have to move flotation outward.

Side Stability Floats

This is the least expensive way to buy real stability on a floating dock, and it is the upgrade most people skip.

Side Stability Floats measure about 47 by 13.5 by 6.75 inches and bolt to the outside of the frame rail. Each one adds 120 pounds of buoyancy. A pair per side covers the full 8 ft length of a section, so a fully outfitted section carries four of them.

Run the numbers on what that does. A standard section has a 48 inch flotation footprint. Adding side floats on both sides pushes that out to about 75 inches. Cube that ratio and you are looking at something in the neighborhood of three and a half times the resistance to rolling, for a fraction of what it would cost to add another row of sections.

The reason they work so well is where they sit. They ride at or just above the waterline, so on a level dock they are barely doing anything. The moment the dock starts to tip, the low-side float submerges and pushes back hard, and it does so far out from the centerline where leverage is greatest. They also double as bumpers, which saves gelcoat.

Add them in pairs on both sides. Floats on one side only give you a dock that leans.

If you would rather not retrofit, the Premium Floating Dock Systems come with side stability floats integrated on every section.

Length: Short Docks Wobble More Than Long Ones

This one surprises people. A small floating platform moves more than a long dock, not less.

A short platform is short relative to the waves hitting it, so it rides up and over every single one. A longer dock spans several wave crests at the same time, and the lift under one section is partly canceled by the trough under the next. More of the dock is always supported by average water rather than by the peak of a passing wake.

Length also buys you anchor points. A 16 ft dock might carry four anchors. A 48 ft dock can carry eight or more spread across a much wider footprint, which is what actually keeps it from swinging.

A long floating dock is not a rigid beam, either. Hinges every 16 feet let the sections articulate over waves instead of fighting them, which keeps stress off the frames and off the hardware. That flexibility is a feature. A dock that tried to stay perfectly flat across 48 feet of moving water would tear itself apart.

How Much Water You Need

Floats hang 12 inches below the frame and draw two to five inches depending on load. You want at least two feet of water under the first float, and you want that measured at the lowest level you expect all season, not the level on the day you walk the shoreline.

A gradually shelving bottom means you need more length before the floats clear. A steep drop-off means you need less. Walk it out with a tape or a marked pole before you decide.

Sizing to Your Boat

The working rule for tying alongside is that your dock run should be at least two-thirds the length of the boat. A 21 ft pontoon wants around 16 feet of usable dock beside it. Shorter than that and the bow or stern is always swinging.

Modular floating docks come in 8 ft increments because the frames are 4 ft by 8 ft, so packages run 16, 24, 32, 40, 48, 56, and 64 feet. Designing on a 4 by 8 grid keeps the math simple and keeps future expansion possible.

Shape Does More for Stability Than Length Does

Once you have a length that reaches usable water, the shape of the far end is where you get the most return.

A straight run is the cheapest path to the water and the least stable place to stand. It is the right choice when the dock exists to get you to a boat and nothing more.

A patio configuration adds a side-mounted platform partway out. The extra flotation off to one side reduces roll and gives you somewhere to put two chairs without blocking the walkway.

A T-shape puts a wide platform at the deep end. This is the layout most families end up wanting. It gives you a stable place to board, room to launch a kayak off the side, and tie-up space on two faces instead of one.

A double patio is the widest standard layout and the most stable. If you entertain on the dock, or if someone in the household is uneasy on moving surfaces, this is the one that solves it.

Slips are a different kind of layout decision. Instead of tying alongside, you run dock on two or three sides of the boat and back it in. Slips give you far better control of the boat in current and wind, and they are the starting point for any covered layout. They also change what the frame has to do, because the dock is now spanning an opening rather than sitting on continuous flotation. That is truss frame territory, not low profile.

One honest caution on all of these. A wide platform at the end of a long run catches more wind and more wave energy than a straight dock does, and it wants a correspondingly better anchor plan. Our guide on how to anchor a floating dock covers deadweight, auger, and piling systems and how to match them to your conditions. Read it before you finalize a layout, not after.

Don't Forget the Shore Connection

The ramp is where most floating dock designs go wrong, and it goes wrong seasonally.

With an 8 ft ramp and a deck sitting about 14 inches below the shore mount, you are walking a slope of roughly one in seven. That is fine. Now drop the lake three feet in August and that same ramp is steep enough that people start using their hands.

If your water moves more than about two feet through the season, plan on a longer gangway or a shore mount that can be repositioned. The U.S. Access Board's guidance on boating facilities is written for public marinas, but the slope discussion is a useful sanity check for any homeowner deciding how long a ramp needs to be. Reservoir owners dealing with real drawdown should plan for the low pool, not the average.

When a Floating Dock Isn't the Right Answer

Floating docks are not automatically the better choice, and we would rather you buy the right thing.

If your bottom is firm, your water is under six or eight feet at the end of the dock, and your levels are reasonably stable, a stationary pipe or jack dock will be more stable than any floating dock, usually costs less, and will not move at all when a wake comes through. That is a real advantage and it is worth taking seriously.

Floating docks earn their place when the water is deep, the bottom is soft or muddy, the levels swing, or you are on a canal, river, or reservoir where a fixed structure would be fighting the conditions. In those situations nothing else works as well.

If you are between the two, a roll-in dock sometimes splits the difference for seasonal use on moderate depth.

Designing It Yourself or Buying It Designed

Almost everyone reading a planning article is weighing the same question. Build it or buy it.

Building from scratch is genuinely possible, and our guide on how to build a floating dock walks through the options. The part people underestimate is not the cost of lumber. It is the weight. A pressure-treated wood floating section is several times heavier than an aluminum one, which makes it harder to launch, harder to pull in the fall, and harder on the flotation underneath it.

There is a middle path that most people do not realize exists. Modular floating docks let you design the layout yourself while skipping the engineering, the material sourcing, and the heavy fabrication. You decide the length, where the patio goes, which side the T faces, and how many side floats you want. You can start with individual 4 ft by 8 ft sections and grow the layout over several seasons as your budget allows.

That is the version of DIY most waterfront owners actually want. Full control over the design, none of the guessing about whether the frame is strong enough.

One last piece of planning to do before you order anything. Check your permits. Most private residential docks are covered under general permits, but the requirements vary by state and by waterbody, and some lakes have HOA or lake association rules on dock length and footprint on top of that. The U.S. Army Corps of Engineers permit page is the right starting point, and your state's DNR or equivalent agency handles the rest.

Putting It Together

Here is what this looks like in practice.

A family on a 300 acre lake with a 21 ft pontoon, two kayaks, and moderate boat traffic does well with a 32 ft run to a T-shaped end. The length gets them past the shallow shelf, the T gives them stable boarding and tie-up on two faces, and side stability floats on the outer sections take most of the roll out of passing wakes. They still park two chairs on the T in the evening.

A couple on a deep, quiet lake who mostly swim and read might be better served by a 16 ft straight run to an 8 ft by 8 ft swim platform. Less dock, more platform, and the money goes where they actually spend their time.

Someone on a canal with a seawall and a narrow channel has different constraints entirely, which is why canal floating docks use a different ramp and hinge arrangement.

Final Thoughts

Good floating dock design comes down to three ideas.

Deck height is set by the float below and the frame above, not by preference. Low profile suits most lake recreation. Truss suits rivers, debris, bigger wake, slips, and roofs. Pick the frame from the water, not the catalog.

Width buys stability faster than anything else you can spend money on, because roll resistance climbs with the cube of the flotation footprint.

Length gets you to usable water and gives you room for anchors, but shape is what makes the dock a place you want to be.

Plan those three around how you actually use the water, check your permits, match your anchoring to your conditions, and the dock will do what you wanted it to do for a very long time.

If you want a second set of eyes on a layout, send us your shoreline details. We will tell you honestly if a floating dock is the right fit, and if it isn't, we will tell you that too.
